Audio Technica MicroLine Condenser Gooseneck Microphone with 5‑Pin Desk Stand Power Module (123 mm/4.85" Gooseneck)

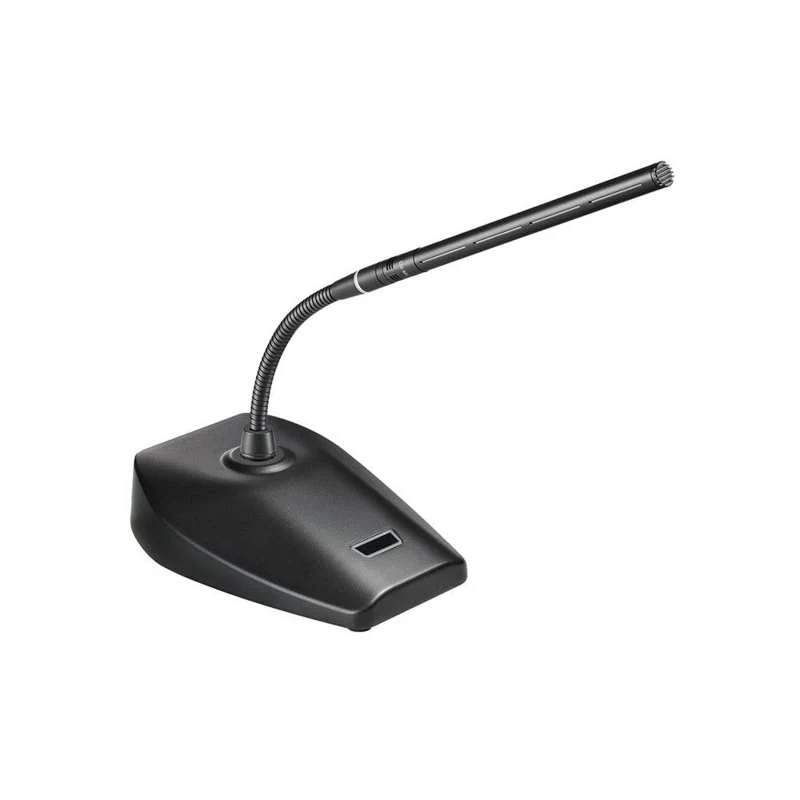

ES925/DS5 MicroLine Condenser Gooseneck Microphone with 5‑Pin Desk Stand Power Module (123 mm/4.85" Gooseneck)

• Modular condenser gooseneck microphone system with desk stand power module
• MicroLine® polar pattern for precise speech capture and superior off‑axis rejection
• Touch‑sensitive capacitive switch with multiple operating modes
• Interchangeable microphone elements, goosenecks, and power modules
• TAA‑compliant for government and enterprise installations

The ES925/DS5 is a professional modular microphone system designed for sound reinforcement, conferencing, and other commercial audio applications. The system includes a condenser microphone element, flexible gooseneck, and a heavy‑duty desk stand power module for stable, reliable tabletop operation.

Each component is fully interchangeable with other ES Modular Microphone components, allowing complete customization of polar pattern, gooseneck length, and power module type to meet the specific requirements of any installation.

Modular System Design

The ES925/DS5 supports interchangeable components, enabling users to mix and match from a wide range of options.

• Power Modules: XLR, FM3, FM5, DS5

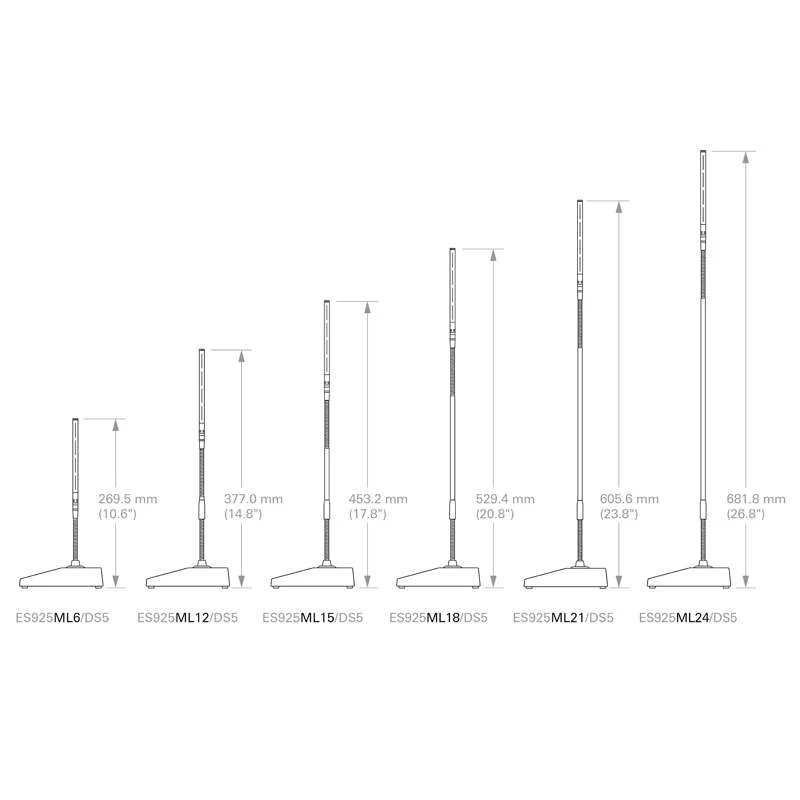

• Gooseneck Lengths: 4.85", 9.08", 12.08", 15.08", 18.08", 21.08"
• Polar Patterns: MicroLine®, cardioid, hypercardioid, omnidirectional

Gooseneck & Microphone Element

The low‑profile microphone element attaches to a small‑diameter gooseneck that offers highly flexible positioning while maintaining a refined, unobtrusive appearance. The MicroLine® polar pattern provides a narrow angle of acceptance for exceptional gain before feedback and excellent rejection of off‑axis noise.

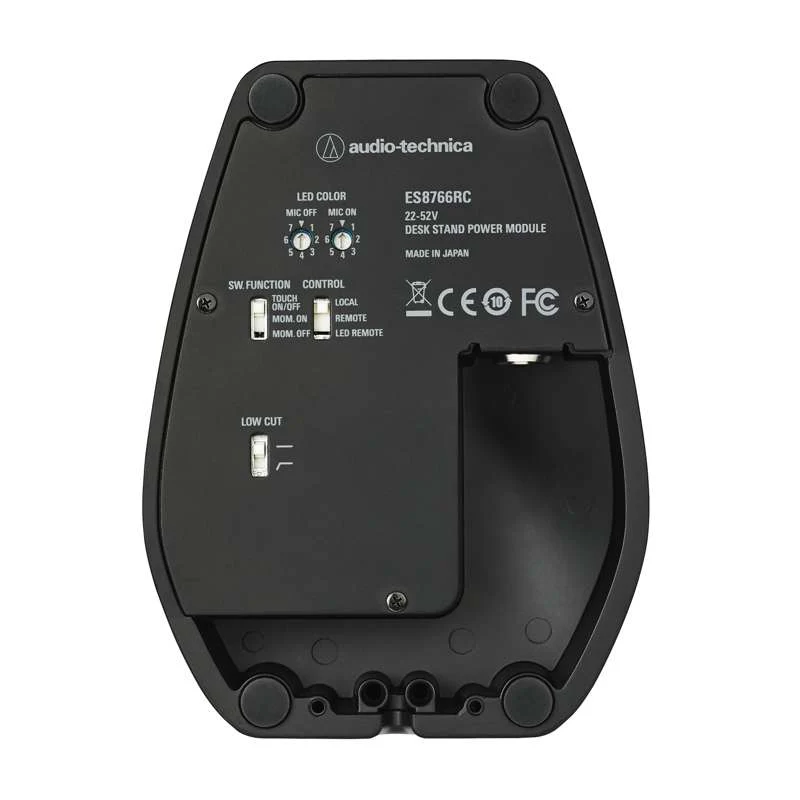

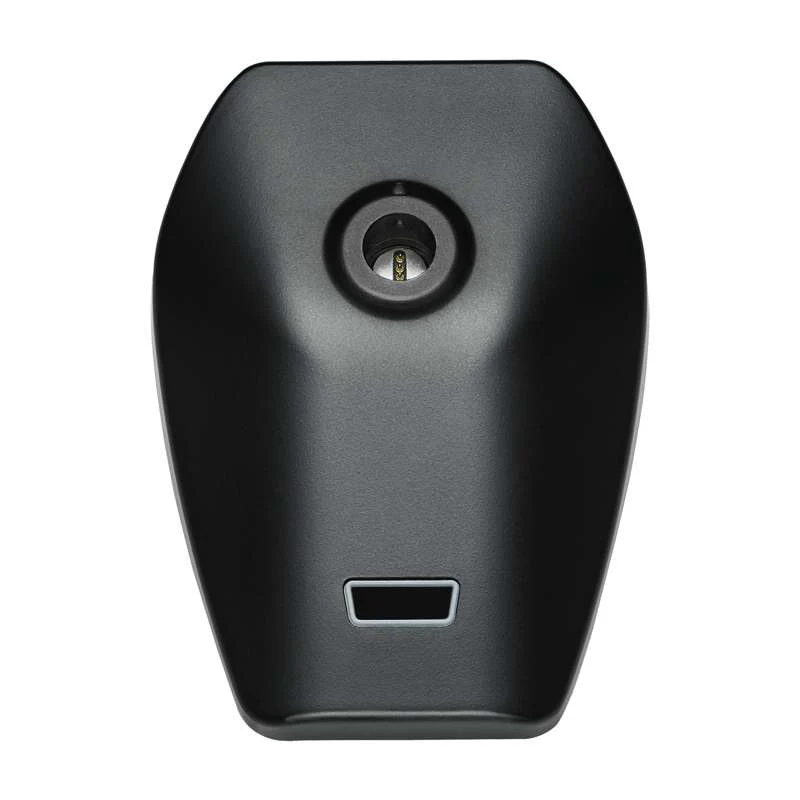

Desk Stand Power Module

The desk stand power module features heavy die‑cast construction and non‑slip bottom pads to minimize surface vibration. A touch‑sensitive capacitive user switch supports multiple operating modes for local and remote control.

• Touch‑on / touch‑off
• Touch‑to‑talk
• Touch‑to‑mute

An external contact closure enables the switch to trigger external devices such as PTZ cameras or lighting systems, making the ES925/DS5 ideal for boardroom and conferencing environments.

Advanced Audio Technologies

• UniSteep® filter for steep low‑frequency attenuation without affecting vocal quality
• UniGuard® RFI‑shielding technology for outstanding rejection of radio‑frequency interference
• Integrated foam windscreen to reduce plosives

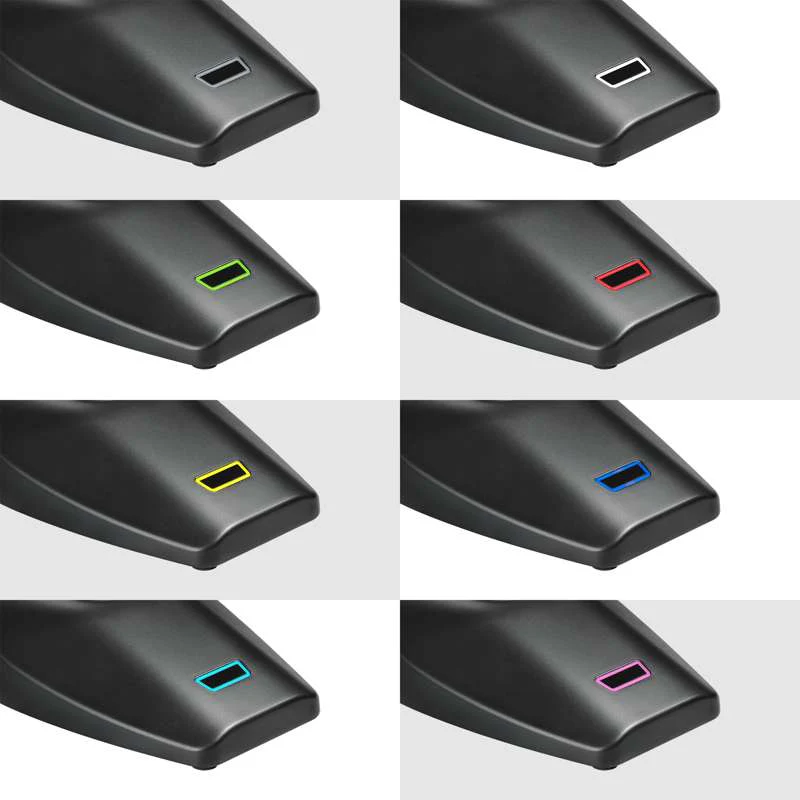

Visual Status & Control

Both the desk stand and microphone element feature a highly visible, two‑state RGB LED indicator to clearly convey microphone status in live sound and conferencing applications.

Audio Performance Specifications

• Frequency Response: 30 Hz – 20 kHz
• Dynamic Range: 112 dB
• Signal‑to‑Noise Ratio: 66 dB
• Maximum SPL: 140 dB
• Low‑Cut Filter: 80 Hz, 18 dB/octave

Connectivity & Power

• 5‑pin desk stand output (TB5M‑type)
• Phantom power requirement: 22–52 V DC
• Current consumption: 8 mA

Included Accessories

• 7.6 m (24.9 ft) microphone cable (TA5F, unterminated)
• AT8109a foam windscreen
• Set screw (M2 × 2)
• Hex wrench

Ideal Applications

• Conference rooms and boardrooms
• Corporate and institutional meeting spaces
• Professional sound reinforcement systems
• Government and commercial installations
