Chief Impact™ On-Wall Kiosk with Protective Glass - Portrait 75 Inch Black

Impact™ On-Wall Kiosk with Protective Glass – Portrait 75" (Black)

The Impact™ On-Wall Kiosk delivers exceptional flexibility for digital signage installations while maintaining a sleek, professional aesthetic suitable for a wide range of environments. This portrait‑oriented model features integrated 5/32" thick tempered glass, factory bonded to the enclosure using industrial adhesives to help protect your LCD display from sharp objects and common impacts.

Designed with serviceability and installation efficiency in mind, the kiosk supports a wide range of displays and provides superior access for maintenance without removing the display from the frame.

Key Features

• Factory‑bonded 5/32" tempered protective glass for enhanced screen protection
• Depth‑adjustable exterior frame supports a wide range of display models
• Wall protrusion of 4" (101 mm) or less when using displays under 2.75" (70 mm) deep
• Integrated wall reveal compensates for uneven walls and provides passive cooling

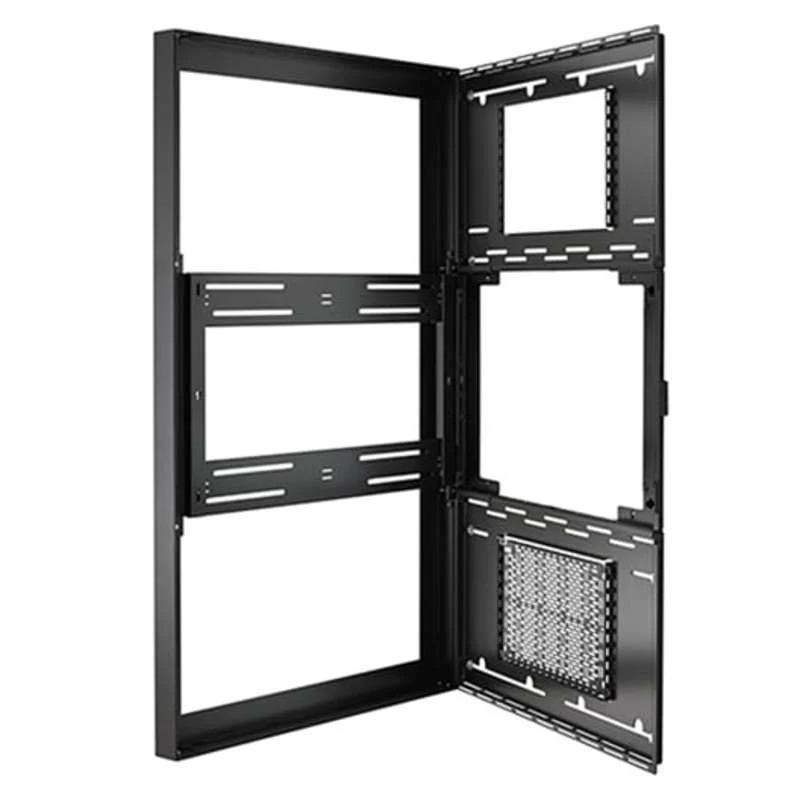

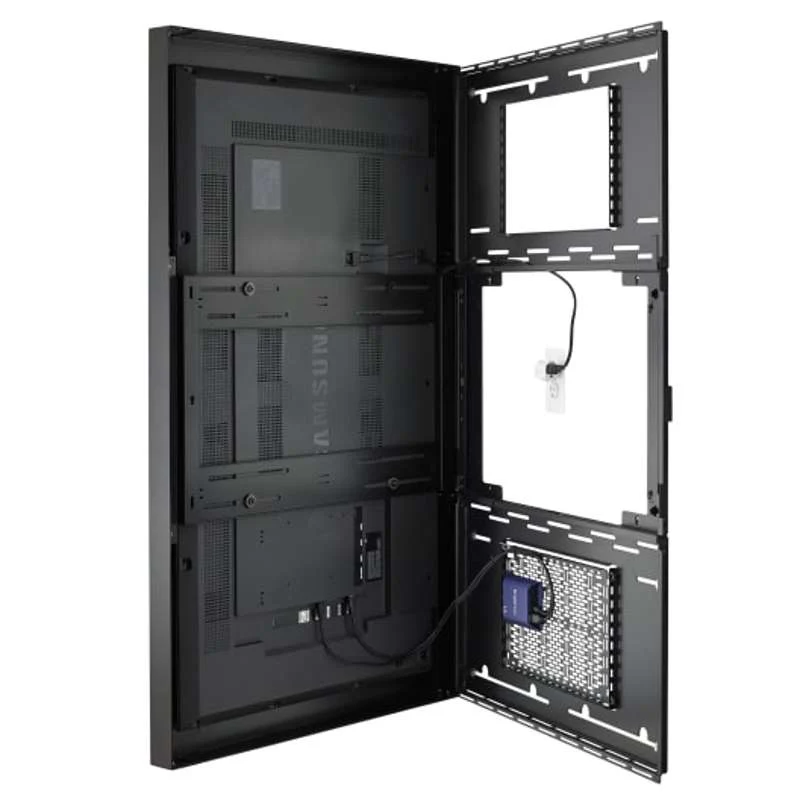

• Exclusive design keeps the display mounted to the frame when opened for service
• Reversible hinges help avoid installation and service obstructions
• Engagement latch compatible with tamper‑proof hardware
• Multiple internal storage options available

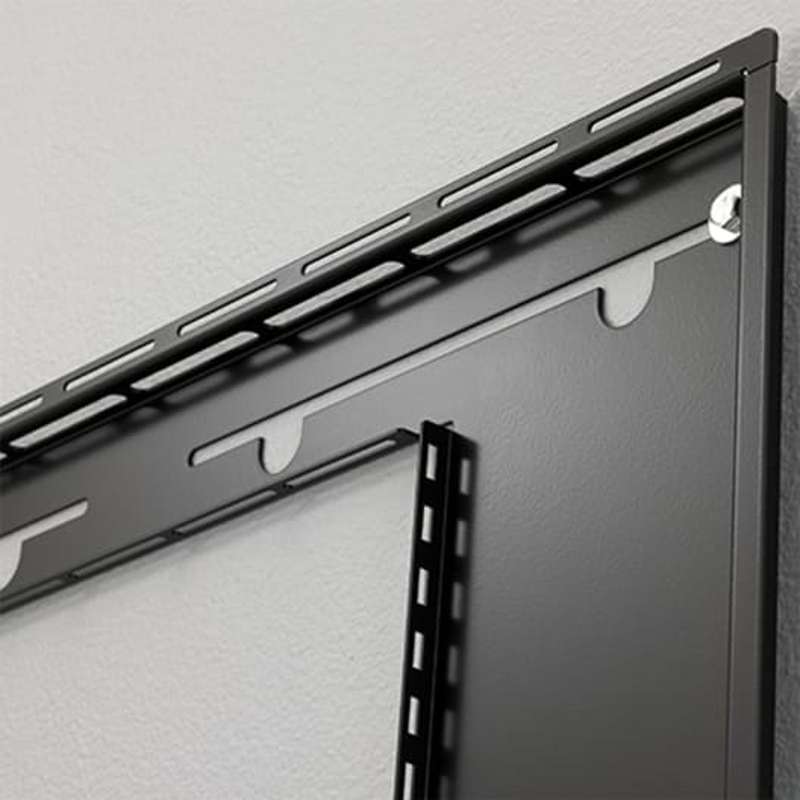

• Integrated Middle Atlantic Lever Lock™ technology—no wall cutting required
• Large open center backing supports in‑wall boxes
• Compatible with PAC525 and PAC526 series in‑wall boxes, including power options

Dimensions & Measurements

• Depth Range: 3"–5" (76–127 mm)
• Maximum Screen Thickness: 3.75" (95.3 mm)
• Typical Screen Size: 75" (190.5 cm)
• Weight Capacity: Mount 135 lbs / Panel 5 lbs

Shipping Information

• Shipping Dimensions: 75" × 44.5" × 10" (190.5 × 113 × 25.4 cm)
• Shipping Weight: 190 lbs (86.2 kg)

Characteristics & Specifications

• Application: Wall, Floor‑Cart
• Orientation: Portrait
• Number of Displays: 1
• Color: Black
• Protective Glass: Yes
• Adjustability: Fixed, Lateral Shift
• Special Features: Closure Door

Included Accessory Types

• Metal Stud
• Mounting Brackets
• Protective Covers
• Thermal Management Components

Certifications & Compliance

• Certifications: UL Listed
• TAA Compliant: No
• UPC: 841872174310
