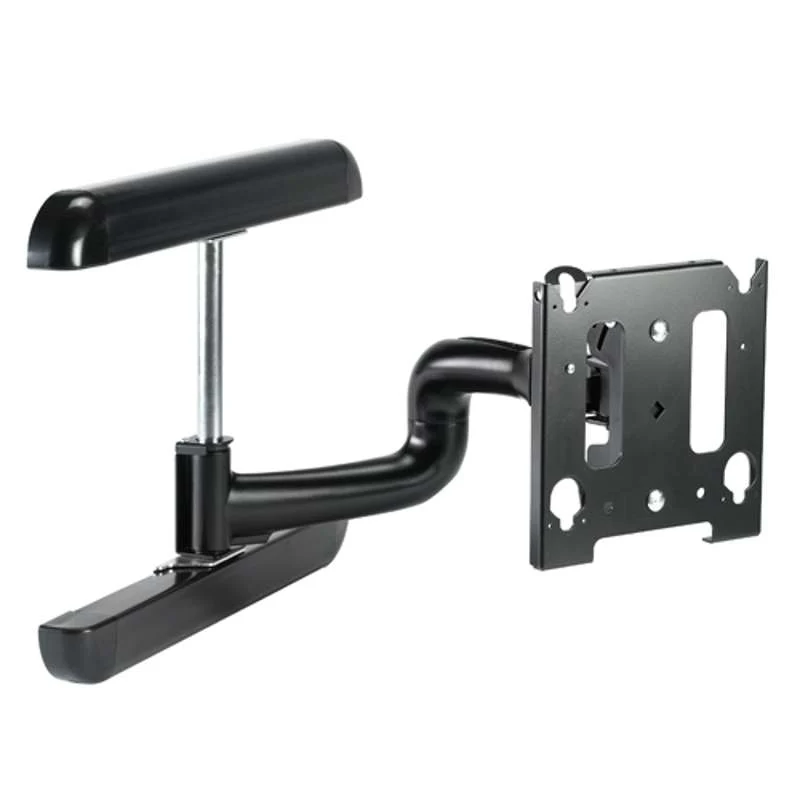

Chief Medium 25" Extension Single Arm Wall Mount - For 30-55 Inch TVs - TAA Compliant - VESA Wall Mount - Black

Medium Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension, TAA Compliant

Provides extended viewing angles for flat panel displays. Standard display mounts are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications.

• Provides full extension while remaining low profile in the home position
• Centris Technology provides fingertip tilt adjustments
• CableTrac System provides a fast and effective way to route cables
• Swivel up to 90° left or right (depending upon screen size)
• Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
• Mounting guides provided for a hassle-free installation
• Q-Latch Mounting System secures flat panel to mount with a latching flag
• Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
• Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
• Minimum Depth: 3.38in (85.85mm), does not include interface bracket

Dimensions & Measurements

• Depth: 3.4
• Height: 18
• Overall Dimensions: 35" x 23.75" x 7.25" (889 x 603.3 x 184.2 mm)
• Shipping Weight: 45 lbs (20.4 kg)
• Typical Screen Size: 30" - 55" (762mm - 1397mm)
• Wall Stud Compatibility: 16" (406mm)
• Weight Capacity: 125 lbs (56.7 kg)
• Width: 23.6

Characteristics & Features

• Adjustability: Extension, Lateral Shift, Swivel, Tilt
• Application: Wall
• Color: Black
• Interface Included: Yes
• Orientation: Landscape, Portrait
• Post-Installation Leveling Roll: Yes
• Solution Type: Universal and Custom
• Special Features: None
• Tilt: +5° / -15°
• VESA Mounting Pattern: 100 x 100mm - 709 x 431mm

Certifications & Warranties

• Certifications: TAA
