Crestron PoE Speaker and Microphone Pod with DM NAX Intelligent Audio Support

Pre-Order PoE Speaker and Microphone Pod with support for DM NAX Intelligent Audio (Shipping July 2026)

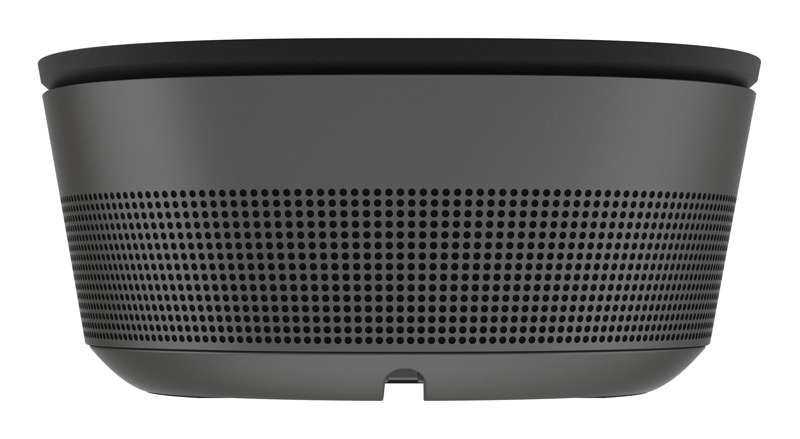

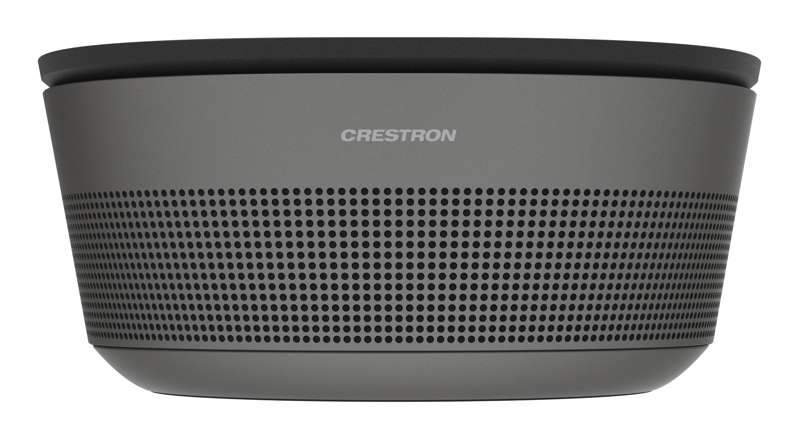

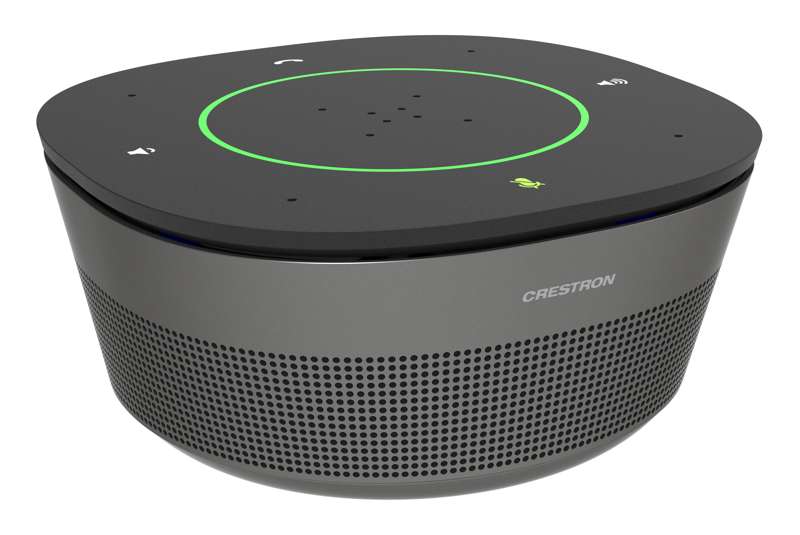

The DM-NAX-POD-MIC-SPK is a table-top microphone and speaker pod that pairs with the DM‑NAX‑AP‑100 to create a DM NAX Intelligent Audio conferencing solution.

Key Features

• A tabletop device for small to large room conferencing solutions with a 12-element array microphone and built-in speaker
• Convenient in-call volume and mic mute controls
• Speaker volume indicator and LED indicator ring display operational status
• Built-in AEC and noise reduction provides exceptional full-duplex audio performance with highly intelligible, echo-free two-way voice quality
• Built-in automatic gain control and automixing balances each microphone in the internal array to provide optimal signal levels while reducing extraneous noise
• Connects via network to a DM‑NAX‑AP‑100 Intelligent Audio processor, which sends and receives audio to a BYOM computer via a USB‑C® connection
• Power over Ethernet+ (PoE+) network powered

The DM-NAX-POD-MIC-SPK is a tabletop microphone and speaker pod for unified communications and commercial audio applications.

DM NAX® Audio-over-IP Capable

The DM-NAX-POD-MIC-SPK connects to a dedicated audio-over-IP network to pair with a DM‑NAX‑AP‑100 Intelligent Audio processor (sold separately) and other microphone or speaker pods.

The processor automatically configures the necessary audio routing and level adjustments once it is paired with one or more pods and/or speakers. Pairing the DM-NAX-POD-MIC-SPK with DM NAX audio devices allows for encrypted unicast audio-over-IP streaming.

Microsoft Teams® Certified Conferencing Solution

When used in combination with the DM‑NAX‑AP‑100 Intelligent Audio processor, the DM-NAX-POD-MIC-SPK is part of a Microsoft Teams certified conferencing solution. This allows the Intelligent Audio processor to be selected as the audio interface for a BYOM device running Microsoft Teams.

Capacitive Call and Volume Buttons

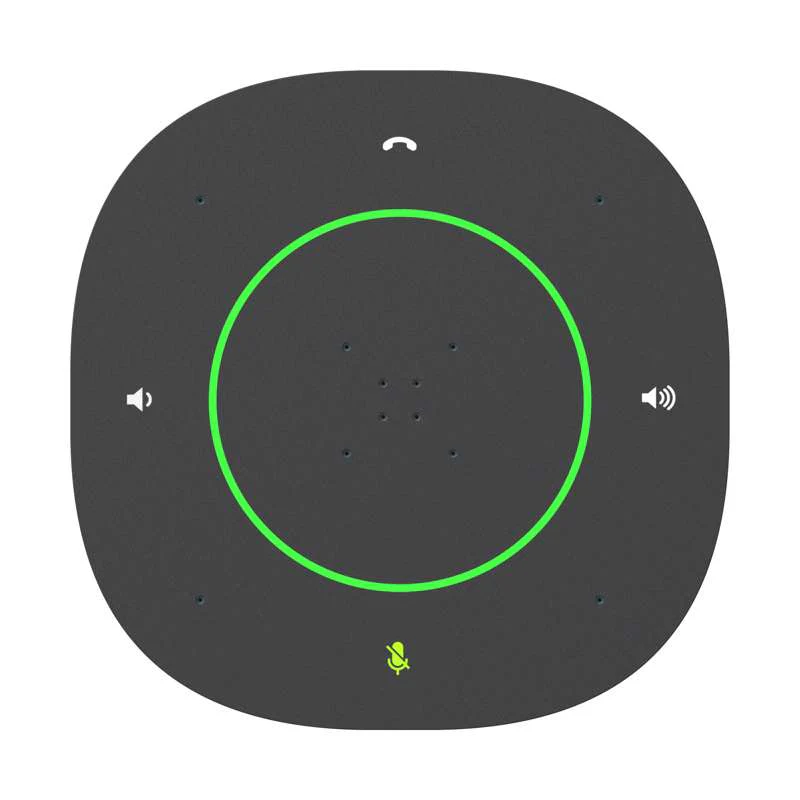

The top surface of the DM-NAX-POD-MIC-SPK features back-lit capacitive buttons for microphone mute control, speaker volume level, and call pickup and hangup functions for a connected BYOM device.
