INOGENI TOGGLE ROOMS XT 3 Host Switcher for USB/HDMI devices with an Extension

TOGGLE ROOMS XT: Triple-Host USB/HDMI Switcher with Extension for Large Rooms

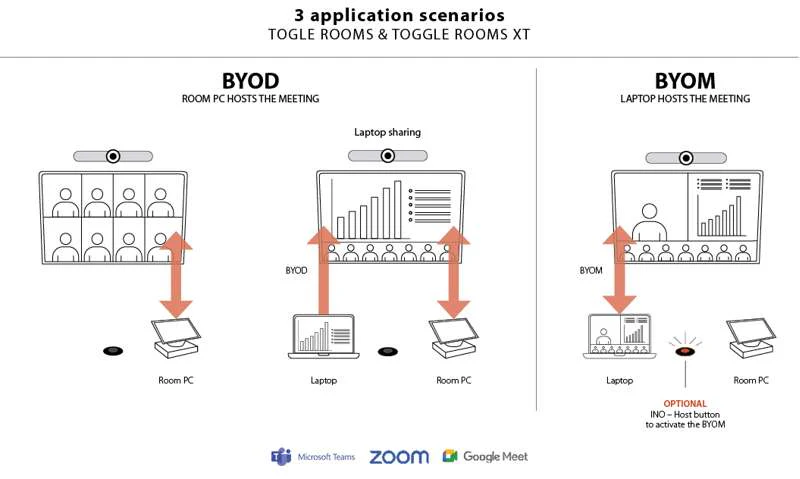

The INOGENI TOGGLE ROOMS XT is a powerful 4K BYOD/BYOM solution designed for large meeting (Room PC) and one at the table (Laptop) The INOGENI TOGGLE ROOMS XT is a powerful 4K BYOD/BYOM solution designed for large meeting spaces. With a single USB-C cable delivering 100W of power, users can take full control of the room’s AV setup—switching between multiple hosts and peripherals effortlessly.

Key Capabilities

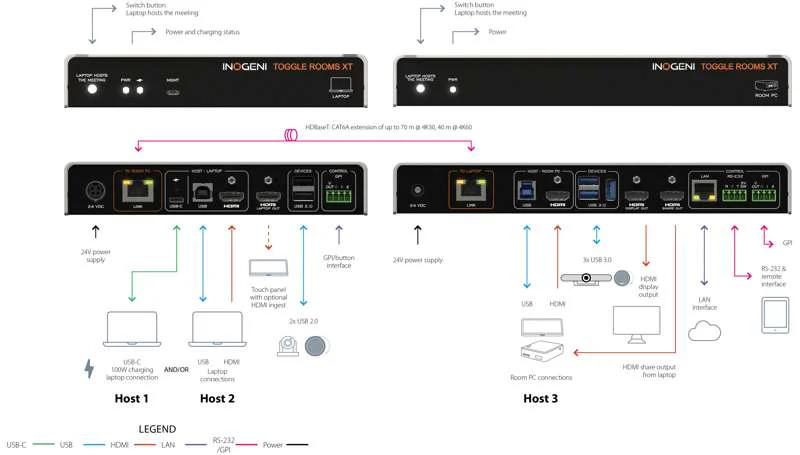

• Switch up to 5 USB peripherals and 1 HDMI display between 3 host devices
• Automatic or manual switching between Room PC hub and Laptop hub
• Flexible laptop connectivity via USB-C (100W) or USB-B + HDMI

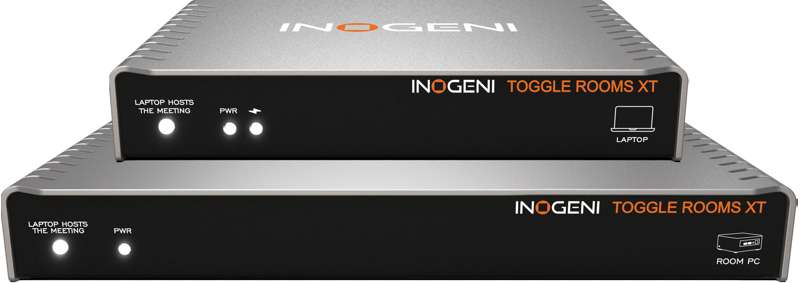

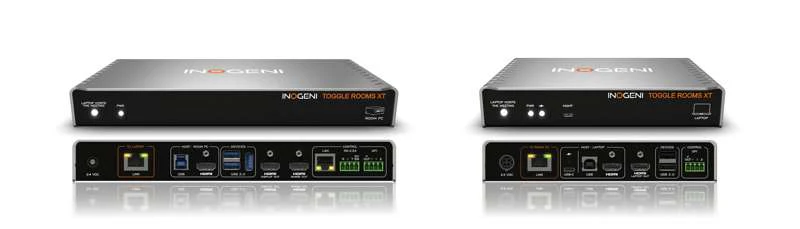

• Two-unit system: one hub at the displayli>
• Connected via a single CAT6A cable
• Uncompressed video transmission using HDBaseT technology
• Transmission range: up to 40 m (132 ft) at 4K60 and 70 m (230 ft) at 1080p
• Supports 4K60/16:9 and 5K30/21:9 widescreen formats

Broad Compatibility

• Designed for seamless integration with Crestron, Logitech, Lenovo, Poly, MAXHUB, Jabra, Microsoft Teams, Zoom, and more

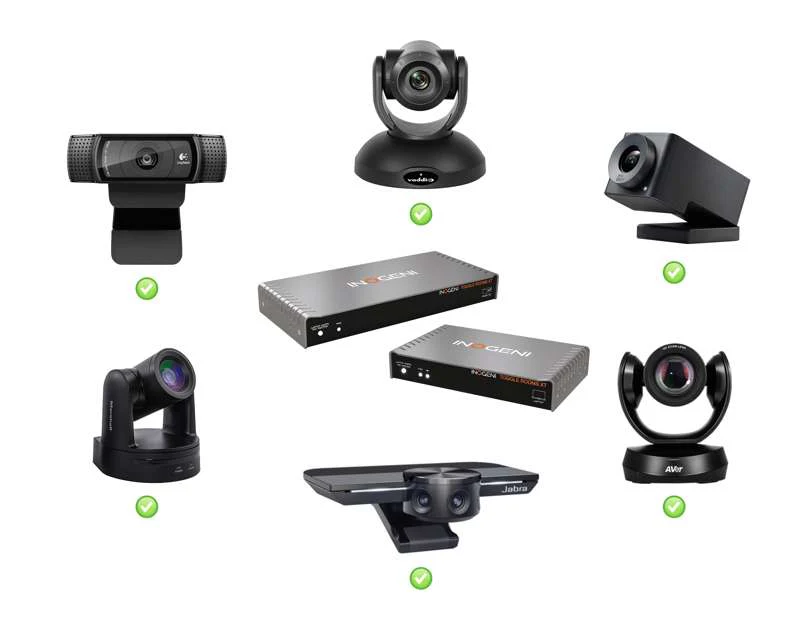

• Fully compatible with Logitech UC cameras and CODECs
• Logitech-tested cameras: Rally, Rally Bar series, MeetUp, MeetUp 2, Scribe, and consumer models
• Logitech UC CODECs: Rally Bar (Appliance Mode), Roommate for MTR and Zoom Rooms
• Supports USB 3.2 Gen 1 / USB 3.1 Gen 1, backward-compatible with USB 3.0/2.0

Control Options

• IP control
• RS-232 control
• GPI control
• Optional table-mounted host switch button for BYOM laptop selection

Quality & Compliance

• Designed and manufactured in Canada
• TAA-compliant

What’s Included

• 1x TOGGLE ROOMS XT – Room PC device
• 1x TOGGLE ROOMS XT – Laptop device
• 1x USB-C to USB-C cable (1.8 m / 6 ft)
• 1x USB 3.0 cable (USB-A to USB-B, 1 m / 3 ft)
• 3x 4-position terminal blocks
• 4x mounting brackets
• 8x M2.5 screws for bracket mounting
• 8x screws for table/wall mounting
• 1x power supply (85–264VAC, 50/60Hz to 24V/6.67A DC) for Laptop hub
• 1x power supply (85–264VAC, 50/60Hz to 24V/1.5A DC) for Room PC hub
• 2x international power adapters (USA/CA or EU/UK/AU/BIS)
• 1x Quick Start Guide / Thank You card
• 4x PSU mounting brackets
• 8x screws for PSU mounting
• 8x rubber feet
