K-array Truffle-KTR25 Compact Omnidirectional Subwoofer

Truffle-KTR25 Compact Omnidirectional Subwoofer

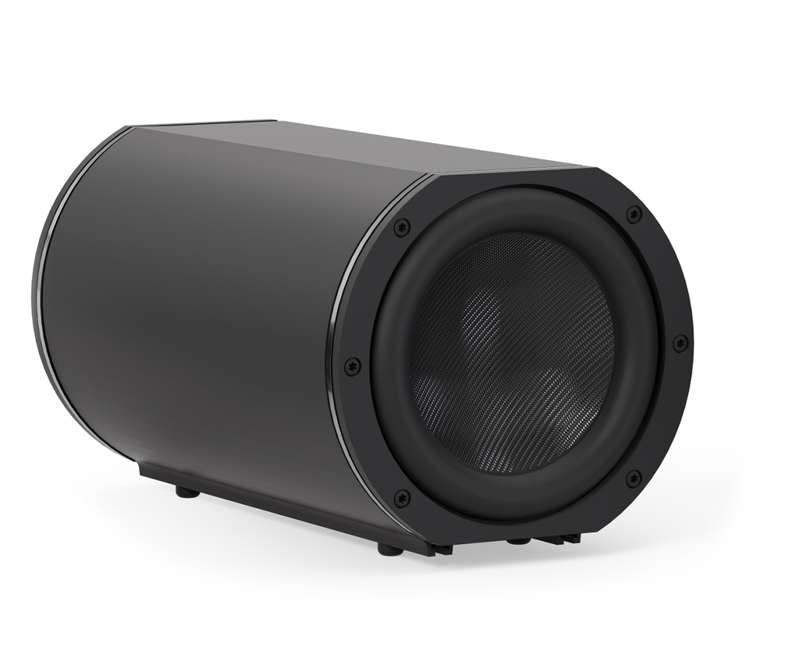

The Truffle-KTR25 is the medium model in the compact line of Truffle subwoofers for deeper bass experience. The source subwoofer has a frequency range of 45 Hz to 150 Hz and is comprised of a single 5.25" driver with passive radiators. Designed to remain unseen, the Truffle-KTR25 has a 10"-long cylindrical speaker box equipped with one 5.25" active driver and one symmetrical 5.25" passive speaker on the opposite side – perfect for an omnidirectional low-end source. This subwoofer provides the low-end frequencies for the Azimut-KAMUT2L14 audio system.

Specifications

General

• Type: Passive subwoofer
• Transducers: 5.25" woofer + passive radiator
• Frequency Response: 45 Hz - 150 / 500 Hz (-6 dB)
• Max SPL: 115 dB (peak)
• Rated Power: 80 W
• Coverage: Omni
• Connectors: 2PIN euroblock connector (included)
• Nominal Impedance: 4 Ω

Handling and Finishes

• Dimensions (W x H x D): 152 x 147 x 258 mm (6.0 x 5.8 x 10.2 in)
• Weight: 2.5 kg (5.51 lb)
• Material: Aluminum
• Colors: Black
• Finishes: Powder Matte

Regulations

• IP Rating: IP64
