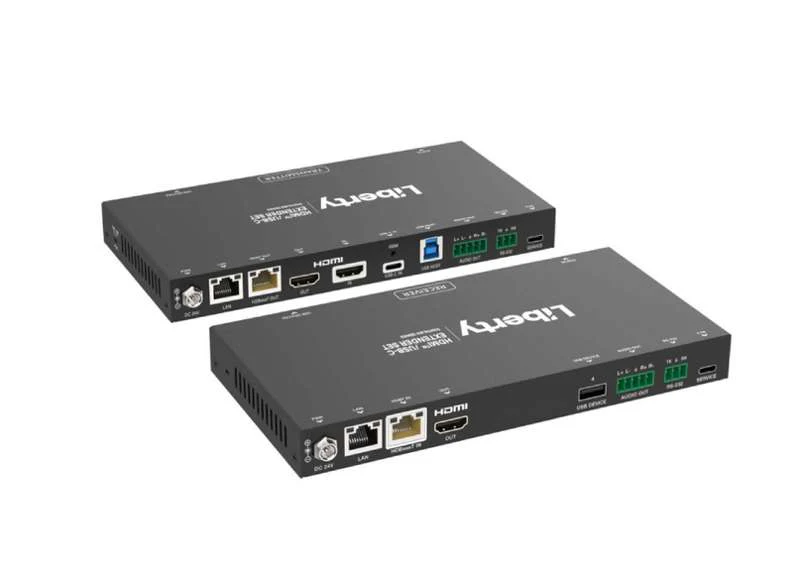

Liberty AV Solutions Digitalinx Series 4K60 HDMI & USB-C HDBaseT 3.0 Extension Set

Digitalinx Series 4K60 HDMI & USB-C HDBaseT 3.0 Extension Set

18G 100m uncompressed HDMI 2.0 / USB‑C auto‑switching 4K60 extender set with USB 2.0 high‑speed extension,HDBaseT 3.0 transport, loop output, and USB client hubs on both transmitter and receiver ends.

Key Features

• HDBaseT 3.0 transmitter & receiver set (includes all required accessories)
• Uncompressed HDMI 2.0 extension supporting up to 4K60 4:4:4 at distances up to 100m over Cat6A U/FTP or higher cabling
• Extends 1Gb Ethernet between TX & RX and injects Ethernet into USB‑C for true single‑cable laptop connectivity
• HDMI / USB‑C auto‑switching based on video sensing or 5V detection
• Full‑featured USB‑C input supporting ALT‑DP video, USB host mode, and up to 100W USB‑C charging to the connected computer
• HDMI 2.0b, HDCP 2.2, 18Gbps performance maintained end‑to‑end
• HDR support including HDR10+, Dolby Vision LLM, and HLG
• USB 2.0 High‑Speed extension:
  • (1) USB Host + (2) USB client ports on TX
  • (2) USB client ports on RX
• Supports isochronous USB data for maximum compatibility with USB cameras and real‑time audio/video devices
• Audio de‑embed available on both TX and RX units
• Built‑in test pattern generator from either TX or RX for system diagnostics and troubleshooting

Product Overview

The Digitalinx Series 4K60 HDMI & USB‑C HDBaseT 3.0 Extension Set is engineered for moderncollaboration environments that demand uncompressed 4K video quality, flexible USB‑C connectivity,and robust long‑distance signal extension. Built on HDBaseT 3.0 technology, the system supportsuncompressed 18G HDMI transport along with Gigabit Ethernet, control, and USB extension over asingle category cable—allowing AV, USB, power, and data to be delivered cleanly and reliably tothe far end of the room.

The extender’s full‑featured USB‑C port allows a single laptop connection to carry 4K video,USB 2.0 peripherals, Ethernet, and power delivery up to 100W, minimizing cabling clutter and makingit ideal for BYOD/BYOM meeting spaces. Automatic switching between HDMI and USB‑C ensureszero‑touch operation for end‑users, while DisplayPort Alt Mode support ensures broad devicecompatibility. The system’s support for HDR formats—including HDR10+, Dolby Vision LLM, and HLG—delivers superior image quality for premium spaces such as executive conference rooms, classrooms,and training environments.

For USB connectivity, the extender set includes host and client ports on both the transmitter andreceiver, enabling cameras, touch displays, speakerphones, and other peripherals to be positionednear the display or lectern while maintaining seamless communication with the in‑room computer orlaptop. Isochronous USB support ensures reliable real‑time audio/video performance. With built‑inaudio de‑embedding and a test pattern generator on both ends, integrators gain powerful tools forsystem setup, monitoring, and troubleshooting.

Engineered for reliability and simplicity, the Digitalinx 4K60 HDMI & USB‑C HDBaseT 3.0 ExtensionSet delivers a complete single‑cable solution for next‑generation collaboration and presentationspaces where performance, video quality, and ease of use are essential.
