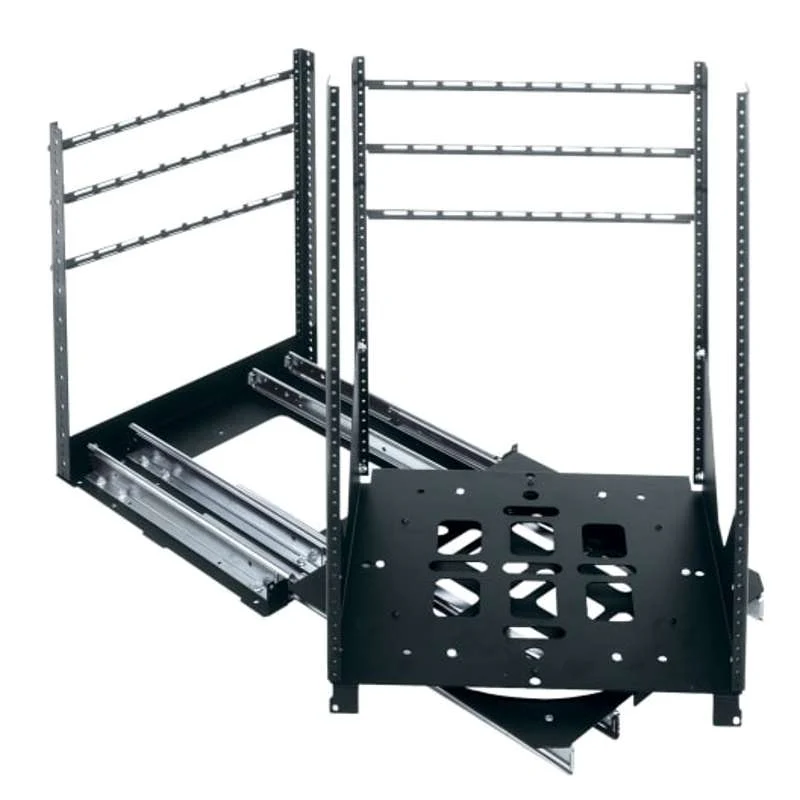

Middle Atlantic SRSR Series Slide Out Rotating Rail System Rack - SRSR-4-14

Specify an SRSR for easy rear access to equipment connections in millwork, cabinets and flush in-wall installations. Available with a 19” or 23” useable depth, the SRSR system extends and rotates 90º in either direction, making it ideal for smaller systems.

• Removable rack frame allows in-shop integration and on-site installation of equipment
• Locks in the extended position for simplified equipment integration
• Rotating equipment bay locks in place at 0º, 60º and 90º for easy installation and servicing
• Self-centering mounting base makes it simple to align system within cabinet opening
• Rear cable support works in conjunction with rear rackrail for effective cable management
• Standard front and rear 10-32 threaded rackrail with marked spaces

Dimensions & Measurements

• Depth: 19.14 in (48.6 cm)
• Height: 27.5 in (69.9 cm)
• Rack Units: 14 RU
• Shipping Weight: 70.2 lbs (31.8 kg)
• Usable Depth: 17.25 in (43.8 cm)
• Usable Height: 24.5 in (62.2 cm)
• Weight Capacity: 250 lbs (113.4 kg)
• Width: 19.13 in (48.6 cm)

Characteristics & Features

• Federal Ops Country of Origin: USA
• Finish: Flat Black Powder Coat
• Rack Rail Type: 10-32
• Rack Type: In-Cabinet

Certifications & Warranties

• Certifications: TAA
