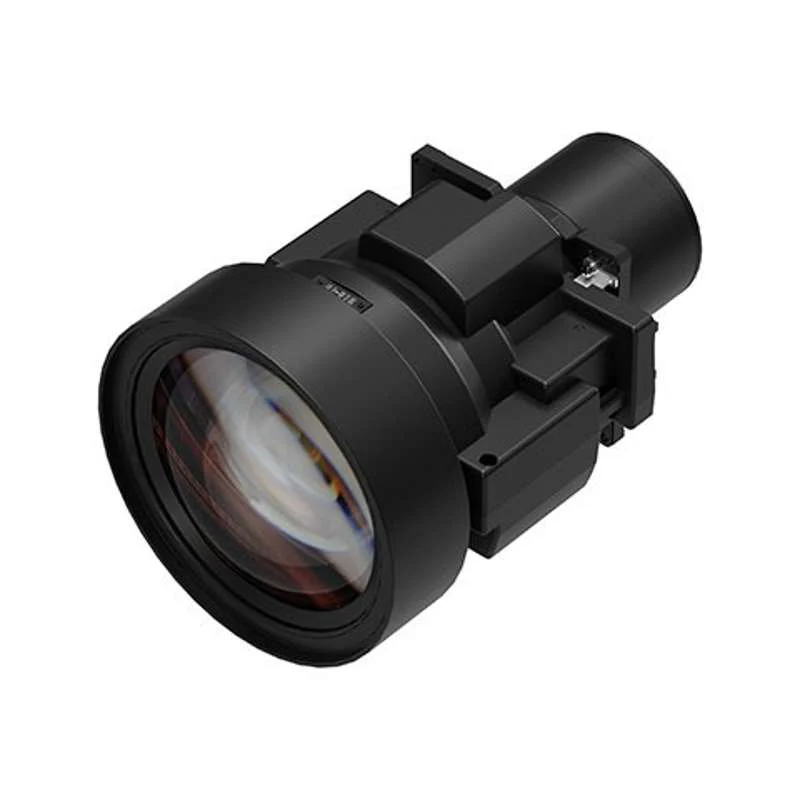

NEC 0.63-0.85 Short Throw Zoom Lens (lens shift)

0.63–0.85 Short Throw Zoom Lens (Lens Shift)

Model: NP52ZL

Compatible Projectors: NP-PA1505UL-B, NP-PA1505UL-W, NP-PA1705UL-B, NP-PA1705UL-W, XP-A201U-B

Specifications

Dimensions (WxHxD)

• Product: 6.9 x 10.9 x 6.9 in. / 174 x 277 x 174 mm
• Shipping: 12.9 x 20.5 x 13.5 in. / 328 x 520 x 344 mm

Weight

• Net: 12.1 lbs. / 5.5 kg
• Shipping: 15.4 lbs. / 7.0 kg

Environmental Conditions

• Operating Temperature: 32–113°F / 0–45°C
• Operating Humidity: 20–85% (Non-Condensing)
• Operating Altitude: 3 to 2600 m (8,500 ft)
• Storage Temperature: 14–122°F / -10–50°C
• Storage Humidity: 20–80% (Non-Condensing)
• Storage Altitude: 0–12,000 m / 0–39,370 ft

Warranty

1 year parts and labor

Optical

• Throw Ratio: 0.65 to 0.86:1 (Motorized Zoom)
• Projection Distance: 2.7 to 31.3 ft. / 0.81 to 9.5 m
• Projector Angle: 22.3–23.1° (tele) / 27.3–28.7° (wide)
• Zoom: Motorized
• Focus: Motorized
• F-number: F=1.84 to 2.25, f=14.4–19.1 mm

Mechanical

• Optional Lenses: Motorized Zoom Lens 0.65–0.86:1 (NP52ZL)
• Primary Lenses: Motorized Zoom Lens 0.65–0.87:1 (NP52ZL)
• Lens Adjustment: Motorized focus, zoom, horizontal/vertical shift
• Lens Memory: Stores lens settings (shift/zoom/focus)
• Supported Screen Size: 60 to 500 in. / 1.5 to 12.7 m
