Sanus Premium Series Tilt Mount For 51" - 80" flat-panel TVs up 125 lbs. - VLT5-B1

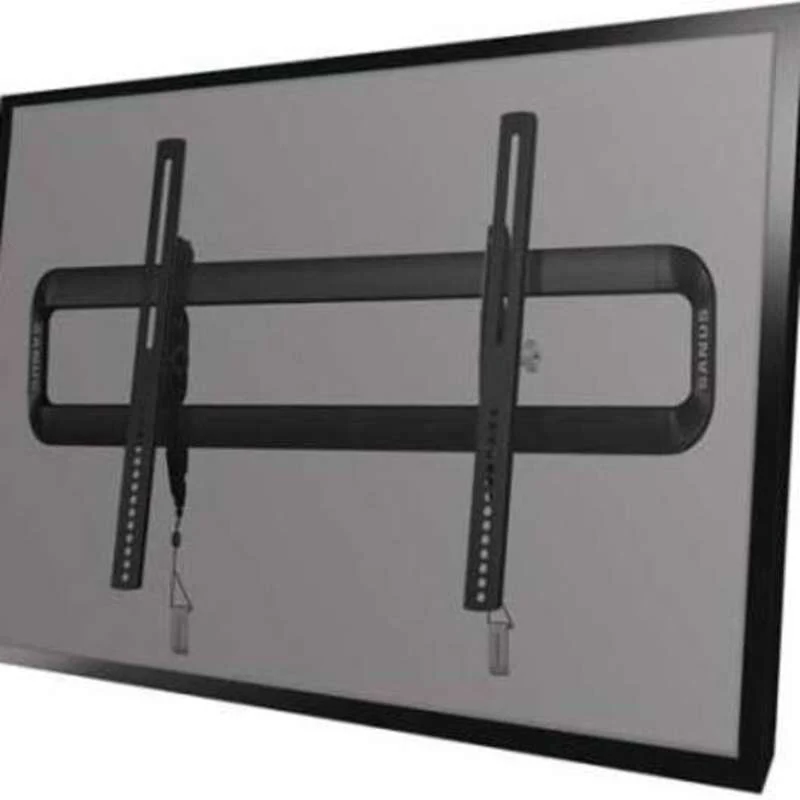

Premium Series Tilt Wall Mount for 51"–80" Flat‑Panel TVs (VLT5‑B1)

The SANUS Premium Series VLT5 tilting wall mount delivers the ideal viewing angle from the couch or floor while maintaining a clean, low‑profile appearance. Designed for 51"–80" flat‑panel TVs, this mount combines smooth fingertip adjustment with secure, installer‑friendly features.

Fingertip tilt allows easy angle adjustments without tools, while the mount tilts back to provide convenient access to cables. Lateral shift lets the TV slide side‑to‑side on the wall plate for perfect placement—even with off‑center studs. An integrated safety tab provides a secure connection you can hear when the TV clicks into place.

Key Features

• Premium tilt mount ideal for viewing from the couch or floor
• Fingertip tilt enables easy, tool‑free angle adjustment
• Side‑to‑side lateral shift allows precise TV positioning on the wall
• Hidden pull‑down straps provide easy cable access behind the display
• Post‑installation leveling adjustments for perfect alignment
• Audible safety click confirms the TV is securely mounted
• Locking system secures the TV to the wall
• Expandable universal TV brackets ensure a secure, custom fit
• Hardware included
• Safety tested and UL Certified

Dimensions & Measurements

• Distance from Wall: 5.08 in (12.9 cm)
• Height: 17.7 in (45 cm)
• Width: 30.88 in (78.4 cm)
• Typical Screen Size: 42"–90" (107–228 cm)
• Maximum TV Weight: 175 lbs (79.4 kg)

Shipping Information

• Shipping Dimensions: 32.09" × 8" × 3.58" (815.1 × 203.2 × 91 mm)
• Shipping Weight: 10.28 lbs (4.7 kg)
• Product Weight: 10.28 lbs (4.7 kg)

Characteristics & Specifications

• Application: Wall
• Adjustability: Tilt, Lateral Shift
• Tilt Range: +7° / −12°
• Universal Mounting: Yes
• Color: Black

Installation Tools Required

• 1/2" Socket Wrench
• 3/8" Masonry Bit (Concrete Installations)
• Electric Drill
• Hammer
• Phillips Head Screwdriver
• Tape Measure

Additional Information

• VESA Range: 200 × 75 to 675 × 410
• UPC: 793795526243
