Sanus Super Slim Tilting Wall Mount For 51" - 80" flat-panel TVs - VLT16-B1

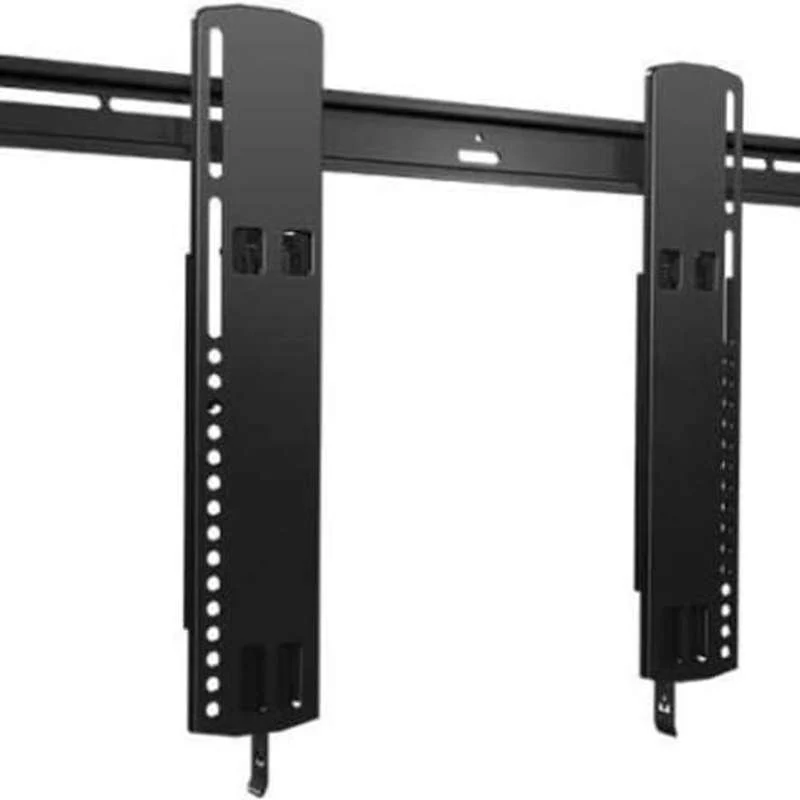

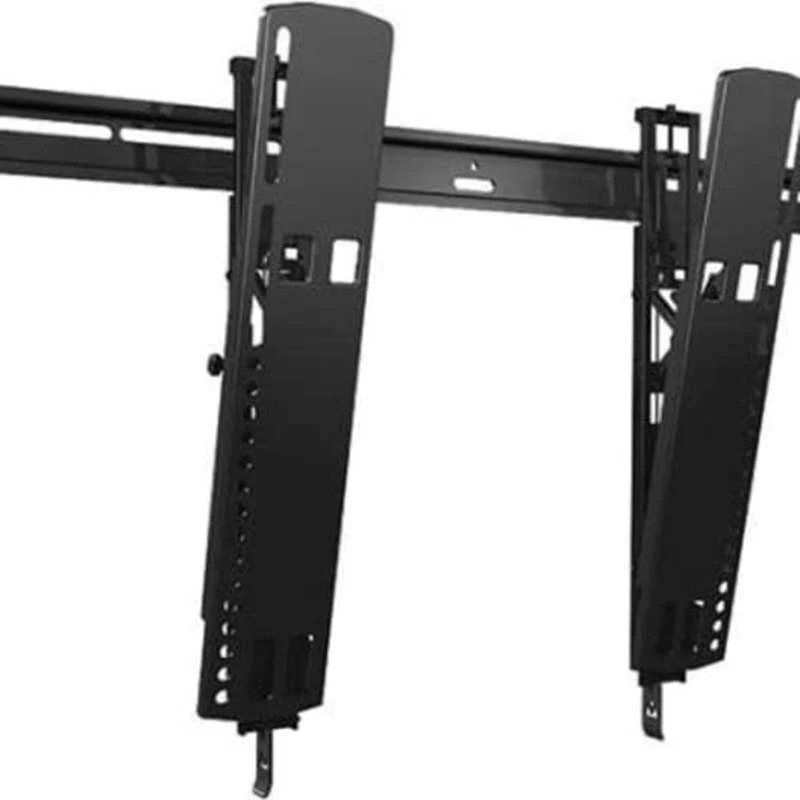

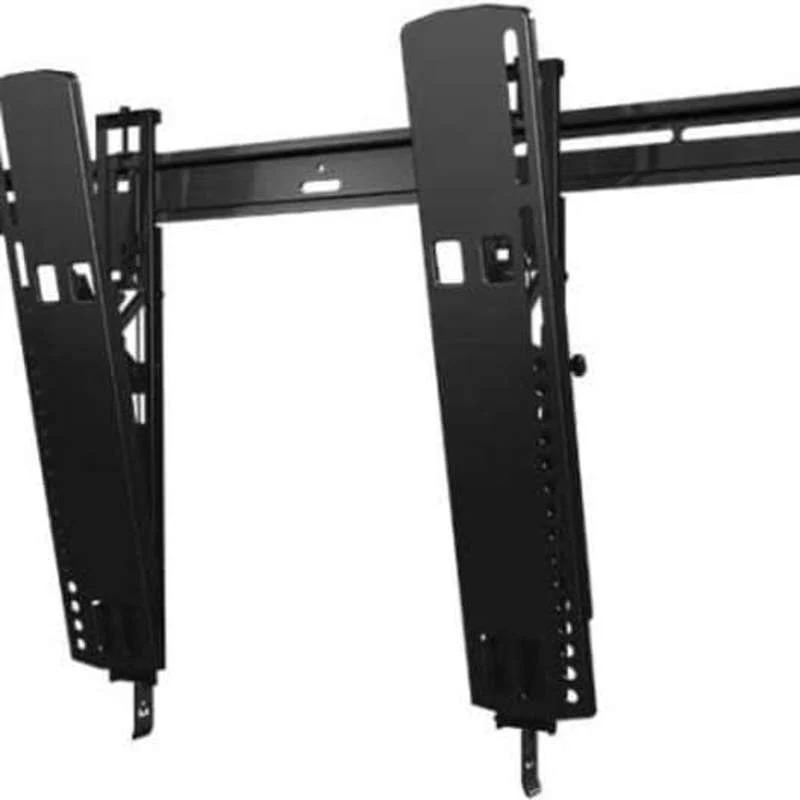

Super Slim Tilting Wall Mount for 51"–80" Flat‑Panel TVs (VLT16‑B1)

The SANUS VLT16 Super Slim Tilting Wall Mount delivers an ultra‑low‑profile design while still providing flexible viewing adjustment. Designed for 51"–80" flat‑panel TVs, this mount positions displays just 0.82" (2.08 cm) from the wall while allowing up to 10° of tilt for optimal viewing comfort.

Featuring Finger‑Tip Tilt technology, the VLT16 allows tilt tension to be easily adjusted to accommodate a variety of TV depths. Exclusive ProSet® post‑installation adjustments enable precise height and leveling after mounting, while ClickStand® technology holds the TV away from the wall for convenient cable access—without removing the display. Wall plate mounting holes support 16" (40.64 cm) or 24" (61 cm) on‑center studs for flexible installation.

Key Features

• Ultra‑slim design places the TV just 0.82" (2.08 cm) from the wall
• Up to 10° of tilt for improved viewing from seated or floor‑level positions
• Finger‑Tip Tilt technology allows easy tilt tension adjustment
• ProSet® post‑installation height and leveling adjustments
• ClickStand® technology provides easy access to rear cables
• Lateral shift enables precise side‑to‑side TV positioning
• Expandable universal TV brackets ensure a secure, custom fit
• HDPro® product engineered for professional custom installers
• Hardware included

Dimensions & Measurements

• Distance from Wall: 0.5 in (1.3 cm)
• Height: 17.3 in (43.9 cm)
• Width: 29.3 in (74.4 cm)
• Typical Screen Size: 51"–80" (130–203 cm)
• Maximum TV Weight: 125 lbs (56.7 kg)

Shipping Information

• Shipping Dimensions: 30.31" × 9.07" × 1.97" (769.9 × 230.4 × 50.1 mm)
• Shipping Weight: 9.08 lbs (4.1 kg)
• Package Width: 37.6 in (95.5 cm)
• Package Depth: 16.22 in (41.2 cm)
• Package Height: 2.5 in (6.4 cm)

Characteristics & Specifications

• Application: Wall
• Adjustability: Tilt, Lateral Shift
• Tilt Range: Up to 10°
• Universal Mounting: Yes
• Color: Black

Installation Tools Required

• 1/8" Drill Bit
• 5/16" Masonry Bit (Concrete Installations)
• 7/16" Socket Wrench
• Awl
• Electric Drill
• Level
• Pencil
• Phillips Head Screwdriver
• Stud Finder
• Tape Measure

Additional Information

• VESA Range: 100 × 25 to 750 × 400
• Universal Mounting: Yes
• UPC: 793795527486
