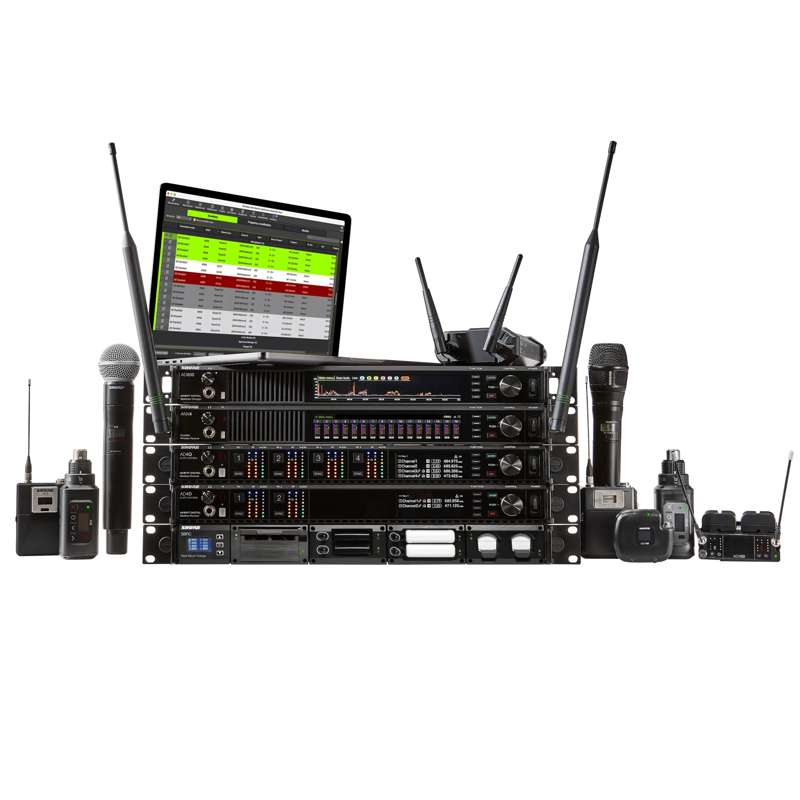

Shure Axient Digital Wireless Microphone System

Axient® Digital Wireless Microphone System

When the world is watching, your wireless system must deliver absolute perfection. Axient® Digital sets the benchmark for premium wireless performance, built for the biggest stages, the tightest RF environments, and the most demanding productions. With unmatched clarity, flexibility, stability, and control, Axient Digital ensures your sound shines in the spotlight—every time.

Clarity and Flexibility, Flawlessly Delivered

RF Protection

• Next Generation Digital Radio + Channel Quality Metering – Advanced modulation with real‑time RF signal‑to‑noise monitoring provides exceptional stability and range.
• True Digital Diversity – Two discrete RF signals per channel are combined with a quality-based algorithm to defend against dropouts and fading.
• Quadversity™ – Assign four antennas to a single channel for extended coverage, improved zone flexibility, and stronger resistance to interference.
• Wide Tuning – Up to 184 MHz tuning bandwidth simplifies inventory and maximizes spectrum efficiency across any venue or city.
• Spectral Efficiency – High Density mode supports up to 47 active channels per 6 MHz band (63 channels in 8 MHz) without sacrificing audio quality.
• Selectable Transmission Modes – Optimize for range or audio performance, with fast recovery and artifact‑free muting at the edge of coverage.
• Frequency Diversity – Redundant independent frequencies deliver seamless backup. ADX2FD handhelds combine both signals for a flawless audio stream.
• Interference Detection & Avoidance – When paired with the AXT600 Spectrum Manager, Axient Digital can automatically switch to a clear frequency to eliminate interference.

Uncompromised Audio Quality

• Ultra-Low Latency – As low as 2 ms end‑to‑end latency (2.9 ms in High Density mode) ensures immediate, natural monitoring and performance.
• Transparent Sound – Flat 20 Hz–20 kHz response captures every nuance with precision.
• AES‑256 Encryption – Secure, unbreakable digital signal for confidential and mission‑critical productions.
• Wide Dynamic Range – Greater than 120 dB for pristine clarity, low noise, and exceptional transient response.
• Dante™ & AES67 Digital Outputs – A four‑port switch allows flexible combined or redundant audio/control routing, plus AES3 output for pristine digital audio.

Command & Control

• Wireless Workbench® & ShurePlus™ Channels – Full system oversight with RF coordination, timeline analysis, device monitoring, and mobile control.
• ShowLink® Remote Control – With ADX transmitters, adjust every parameter in real time via 2.4 GHz diversity control—even during live performance.
• Dante™ Cue & Dante™ Browse – Instantly monitor any Axient Digital channel, or any Dante‑enabled device, through a single headphone output.
• Networked Charging – Smart battery and charging solutions provide runtime visibility, health monitoring, and remote charging status data.

How It Works

Axient Digital was built in collaboration with top engineers and audio professionals to conquer the challenges of modern touring and broadcast environments. High channel counts, complex RF conditions, and demanding workflows are handled with ease. Every detail—from RF resilience to audio transparency to control and management—has been engineered for productions where failure is not an option.

Quality That’s in the Details

• Advanced channel quality metering
• AD and ADX transmitter cross-compatibility
• AES‑256 signal encryption
• Dante, AES67, and AES3 digital output options
• Dante Browse and Dante Cue for rapid monitoring

Why It’s Better

Safeguard Your Signal

Next-generation digital radio, Quadversity, High Density mode, and advanced diversity technologies work together to ensure uninterrupted performance—even in the toughest RF environments.

True Sound

With ultra-low latency, a flat frequency response, and multiple digital audio pathways, Axient Digital delivers sound exactly as intended—clean, clear, and unaffected.

Streamlined Management

From wide-tuning transmitters to ShowLink control and Wireless Workbench integration, Axient Digital gives operators complete command while simplifying setup and daily operation.

Made for the Main Stage

Axient Digital powers the world’s most iconic broadcasts, awards shows, festivals, and live performances. It’s the system trusted when audio must be flawless and the stakes are highest.
