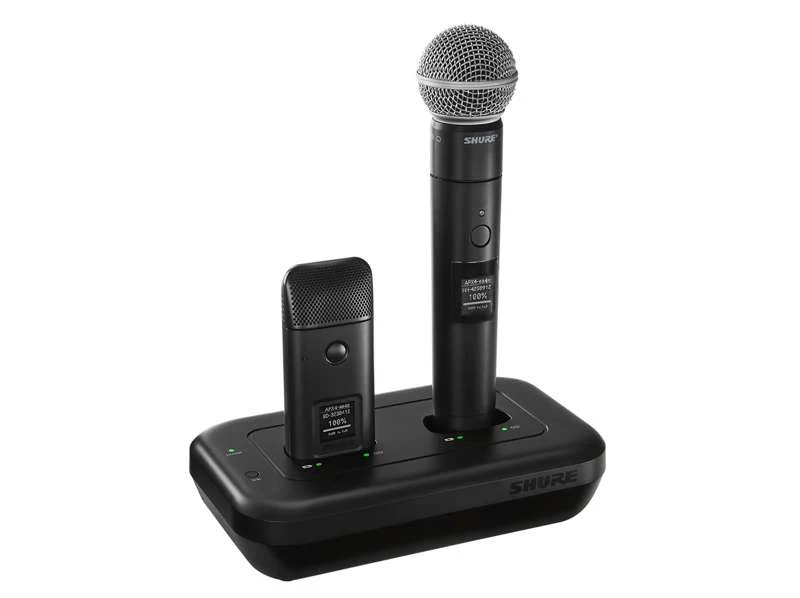

Shure MXW N Networked Charging Cradle for MXW Transmitters (2 Bay)

MXWNDX2 Networked Charging Stations

The Shure MXWNDX2 is a 2‑bay networked charging station designed for Shure MXW neXt wireless systems. It charges up to two transmitters simultaneously—including the MXW1X bodypack, MXW2X handheld, and MXW6X boundary transmitters—without removing their batteries. The station connects via Ethernet (PoE) and provides remote monitoring, battery statistics, and transmitter linking directly to an MXWAPX access point. It is built for professional environments such as boardrooms, conference rooms, classrooms, and houses of worship.

2‑Bay Networked Charging

Charges up to two MXW neXt transmitters at the same time, in any combination (bodypack, handheld, or boundary).

PoE‑Powered Operation

Requires only Power-over-Ethernet for operation—no power button or external power supply needed.

Remote Battery Monitoring

Displays battery status in hours and minutes through Shure control software or compatible third‑party control systems.

Easy Transmitter Linking

Users can assign transmitters to Access Point channels simply by docking and pressing the “Link” button.

Fast Charging Time

• Reaches 50% charge in under 2 hours
• Fully charges in under 4 hours

Smart Battery Management

• Overcharge protection
• Automated battery health checking (including lifetime cycles)

Firmware Updates Over the Dock

Docked transmitters can receive firmware updates via Shure Update Utility.

LED Indicators per Bay

• Battery status
• Link status to the Access Point channel

Integration

Integrates with Shure Designer and the MXW ecosystem for detailed monitoring, configuration, and system-wide visibility.

Professional‑Grade Installation Options

Designed to blend naturally into modern meeting spaces; also supports network daisy‑chaining (on NDX4 version).
