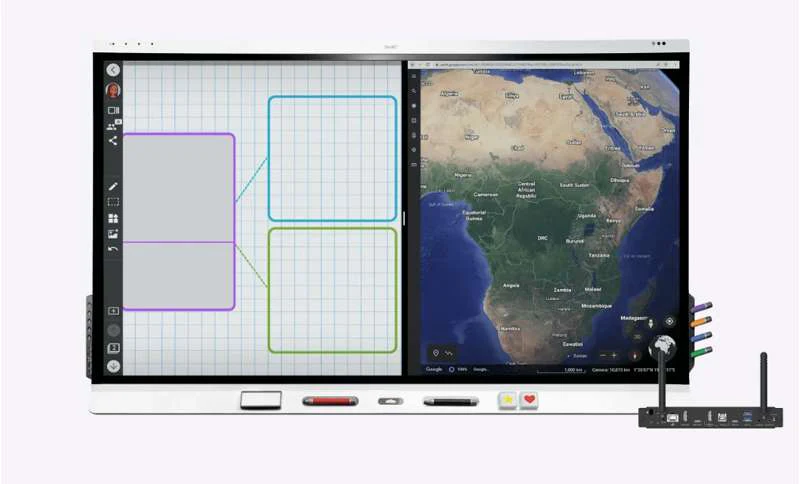

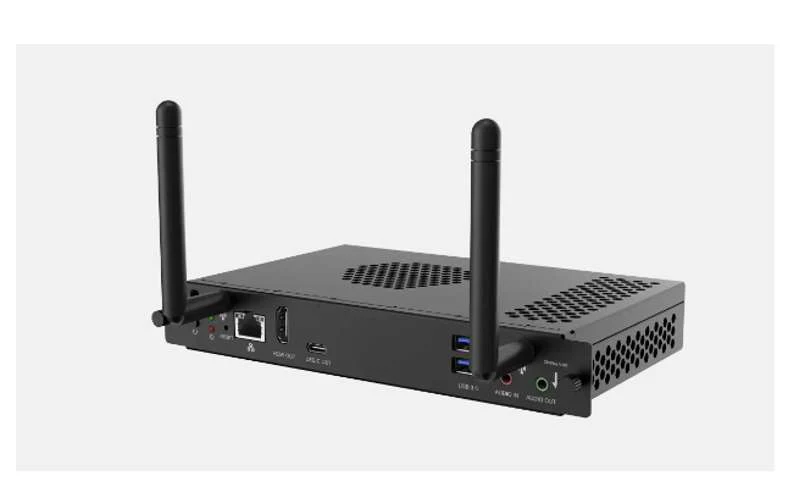

SMART AMG1 Appliance for SMART Board GX Displays

SMART Board Appliance Module - AMG1 for Board GX Displays

Refresh your technology at a fraction of the cost. SMART's appliance modules are a great way to upgrade to the latest embedded computing experience without the hassle of replacing your hardware.

Fully EDLA-licensed by Google, the AMG1 offers customers of SMART Board® GX series interactive displays interoperability with Google and Microsoft applications. Enjoy peace of mind with Android security and system updates plus new features and functionality for your display.

Specifications

Operating System:

• Built-in Android operating system
• Android version: 13.0

CPU:

• Octa-core

Memory:

• 8 GB DDR4
• OS architecture: 64 bit

Storage:

• 64 GB (expandable up to 576 GB)

User Interface:

• 4K UHD (3840 × 2160)

Web Browser:

• Google Play Protect
• Google Play Store

Other Features:

• Personalized home screen and settings
• Digital whiteboard
• Split screen
• File and app libraries

Inputs

• RJ45 (LAN in): 1 x 1000BASE-T
• USB 3.1 Type-A: 2
• MicroSD slot: 1
• Stereo 3.5 mm: 1

Outputs

• USB Type-C: 1 (4K @ 60Hz)
• Display Port: 1.4 (HDCP 1.3 and 2.2, USB 3.1, 4.5 W power delivery)
• HDMI: 1 (2.1, 4K @ 60Hz, with HDCP 2.3 support)
• Stereo 3.5 mm: 1

Connectivity

• Wired: RJ45 1000BASE-T
• Wi-Fi: IEEE 802.11ax (Wi-Fi 6e) supporting WEP, WPA, WPA2, WPA3, WPA PSK, and 802.1X EAP authentication protocols
• Bluetooth: 5.2 dual mode

Storage and Operating Requirements

• Power Requirements: 12-19V DC
• Power Consumption: 22.5 W
• Operating Temperature: 41-95°F (5-35°C)
• Storage Temperature: -4-140°F (-20-60°C)
• Humidity: 5-80% relative humidity, non-condensing

Security

• Security Feature: Kensington® Security Slot

Supported SMART Displays

• Supported SMART Board interactive display series
• Installs in OPS slot and features plug and play (PnP) capability

Included Accessories

• Antennas: 2
• Illustrated Installation Instructions: 1

Software

• Built-in Android operating system
• SMART Remote Management

Installation, Dimensions, and Weights

Note: All dimensions and weights ±10%.

• Product Weight: 1 lb. 8 oz (0.67 kg)
• Product Dimensions: 7 7/8" × 5 1/4" × 1 1/8" (20 cm × 13.2 cm × 3 cm)
• Shipping Weight: 2 lb. 3 oz. (1.0 kg)
• Shipping Dimensions: 10 5/8" × 7 7/8" × 2 1/8" (27 cm × 20 cm × 5.5 cm)
