SMART WM-SBID-200 - SMART Wall Mount for GX, MX, M Pro, NX, QX, RX and 6000s series

SMART Wall Mount for GX, MX, M Pro, NX, QX, RX and 6000s series

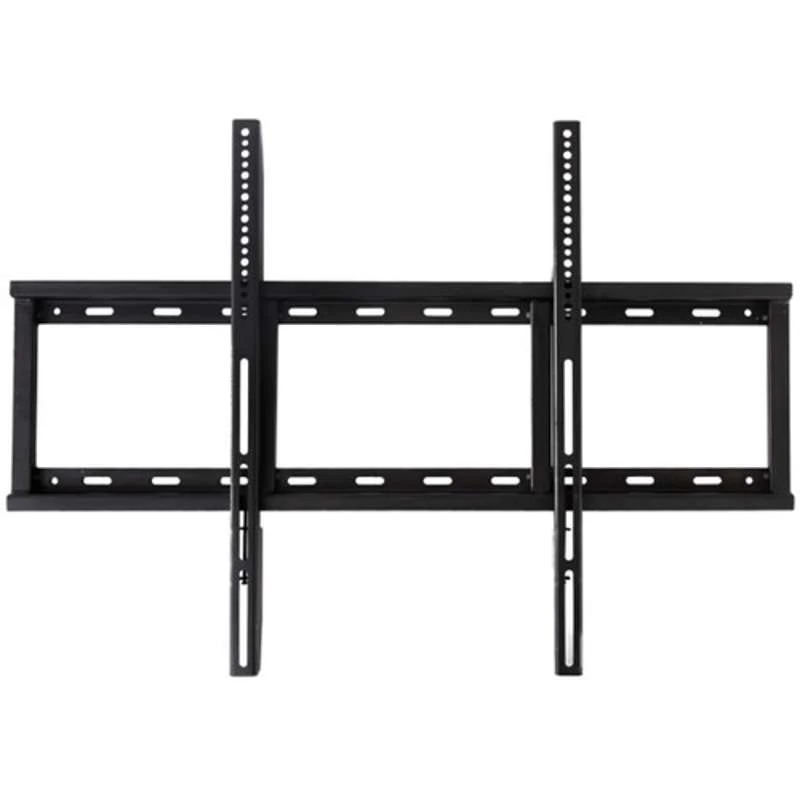

SMART offers a wall mount for installing GX, MX, QX Pro, RX, 6000S, and 7000R series displays. The wall mount kit uses a VESA standard mounting-hole pattern.

Weight Specifications

• Weight:
  9 lb. 4 oz. (4.2 kg)
• Maximum Supported Interactive Display Weight:
  220 lb. (100 kg)

Shipping Dimensions

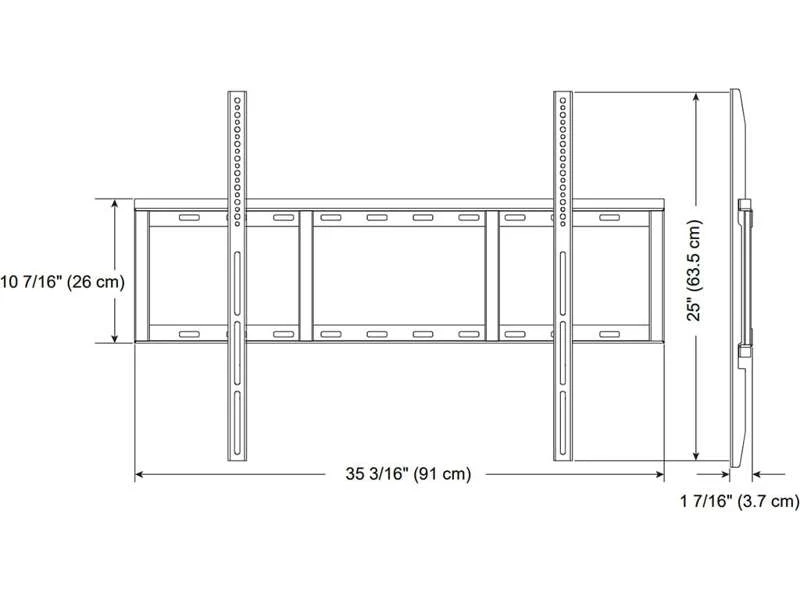

• Dimensions:
  36.5" × 10.7" × 1.8"
  (92.6 cm × 27.1 cm × 4.5 cm)
• Shipping Weight:
  10 lb. 6 oz. (4.7 kg)

Standard Features

• SMART Display Compatibility:
  • SMART Board GX series
  • SMART Board MX series
  • SMART Board QX Pro series
  • SMART Board RX series
  • SMART Board 6000 and 6000 Pro series
  • SMART Board 6000S and 6000S Pro series
  • SMART Board 7000 and 7000 Pro series
  • SMART Board 7000R and 7000R Pro series
• VESA Mounting Compatibility:
  The WM-SBID-200 wall mount kit is compatible with the following range of VESA mounting hole patterns: 200 mm × 200 mm to 800 mm × 600 mm.
• Included Hardware:
  Includes hardware for mounting the brackets to a SMART display. (The hardware for connecting the display to the mount might not be compatible with non-SMART displays.)
  Note: For information about the hardware for connecting your SMART display to the mount, see the display's service parts diagram.

Certification and Compliance

• Regulatory Certification:
  cULus, GPSD
