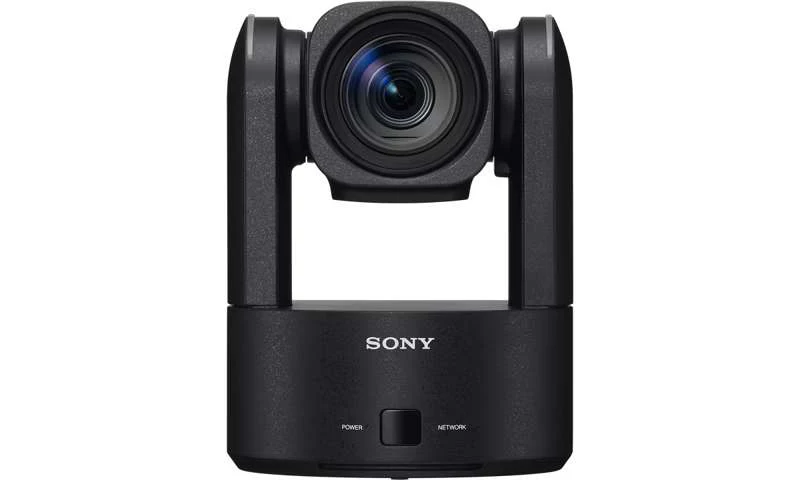

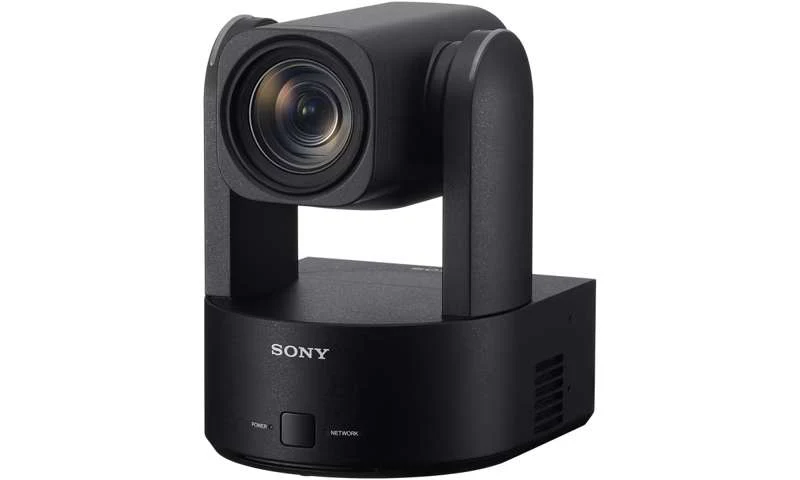

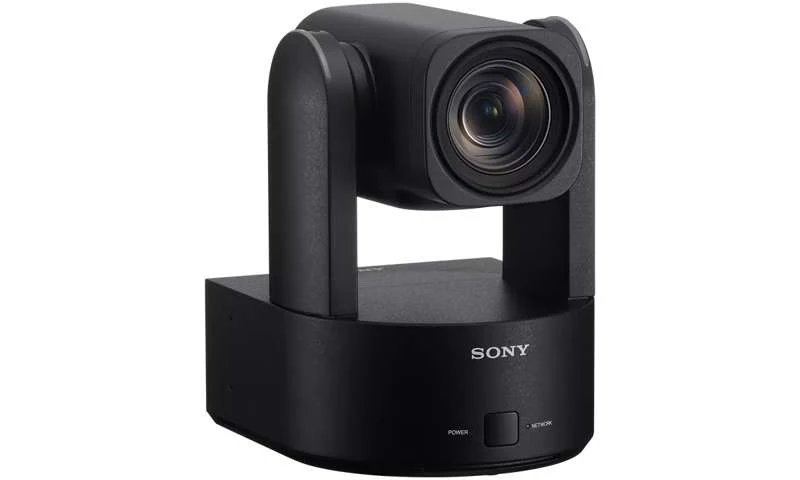

Sony BRC-AM7 Premium PTZ Auto Framing Camera with AI Analytics, Black

BRC-AM7 Premium PTZ Auto Framing Camera with AI Analytics, Black

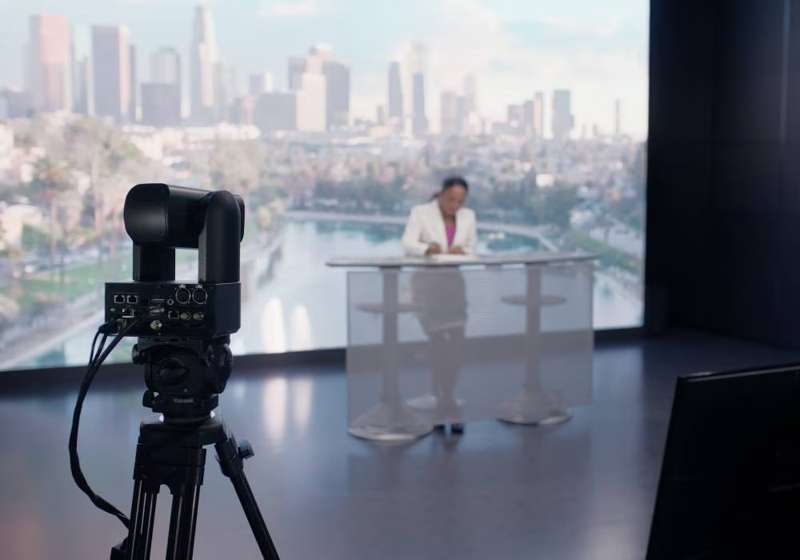

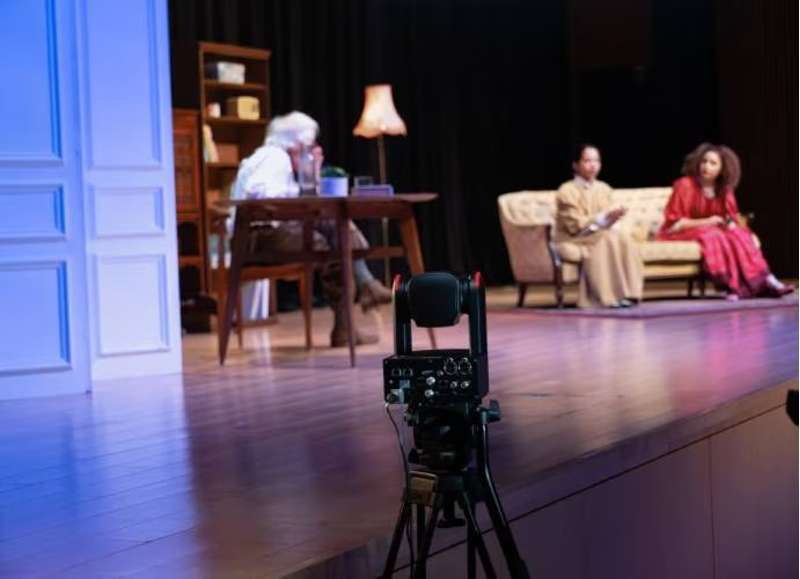

The Sony BRC‑AM7 is a next‑generation 4K PTZ camera that combines advanced AI analytics, exceptional image quality, and professional‑grade control features. Designed for broadcast, sports, houses of worship, live events, and studio environments, the BRC‑AM7 delivers smooth tracking, powerful zoom performance, and seamless integration with Sony’s system cameras.

Key Features

• New Ball Sports (Basketball) framing mode for dynamic indoor sports coverage
• High‑quality 4K 60p imaging with 20x optical zoom and 5K oversampling
• Optical image stabilization with no sensor cropping
• Advanced AI PTZ Auto Framing with expanded sensitivity, speed, and composition presets
• Direct pan/tilt drive with new brushless motors for ultra‑smooth, low‑noise movement
• Supports ITU709/709tone, S‑Cinetone™, and S‑Log3 for accurate color matching
• Scene File management via RCP for streamlined multi‑camera workflows
• SDI output via optical SFP+ with PoE++ and interlaced 3G‑SDI support
• Rich lens capability: 24–480mm (20x optical) with Clear Image Zoom up to 40x (HD)
• Built‑in variable ND filter (1/4–1/128) for smooth automatic exposure
• Multi‑person framing, lead‑room composition, and custom tracking area settings
• Real‑time AF tracking paired with AI-driven Auto Framing for reliable subject capture
• Quiet operation below NC25 for studios and performance environments
• Intuitive Web App for control of PTZ, focus, iris, ND, recording, playback, and tracking

AI‑Enhanced Framing and Tracking

• Accurate recognition of human pose, face, head, and clothing
• Automatic subject tracking after moving between presets
• Tracking Range overlay on Web UI for guided framing zones
• Lead Room Effect adjusts framing based on subject gaze direction
• Multi‑person framing for up to eight subjects
• Face Registration prioritizes presenters and recurring subjects

Imaging Performance

• 1.0‑type Exmor RS™ sensor with approx. 14M effective pixels
• BIONZ XR™ engine for high‑speed processing and low‑noise output
• 4K HDR imaging with wide dynamic range and wide color gamut
• 4K 120p recording option for smooth slow‑motion capture*

*Recording only; requires additional hardware. 4K 120p not available via PoE++.

Smooth PTZ Operation

• Direct‑drive axial‑gap brushless motors with high torque
• Precision optical encoders for accurate movement
• Pan/tilt speeds: 0.004°/sec to 180°/sec

System Integration

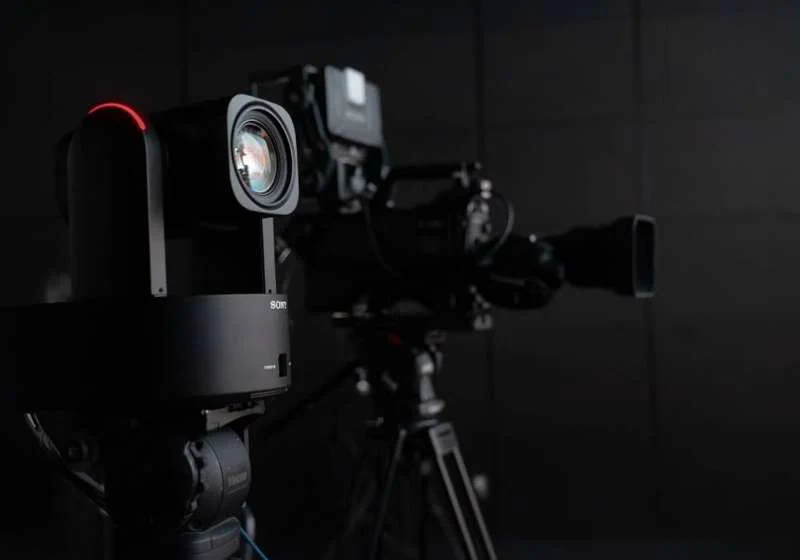

• Works seamlessly with Sony system cameras via S700PTP and free‑d
• Supports RCP and MSU controllers for studio-style operation
• Free‑d protocol for virtual production (VR/AR) tracking metadata
• Color matching with Sony Cinema Line and System Cameras

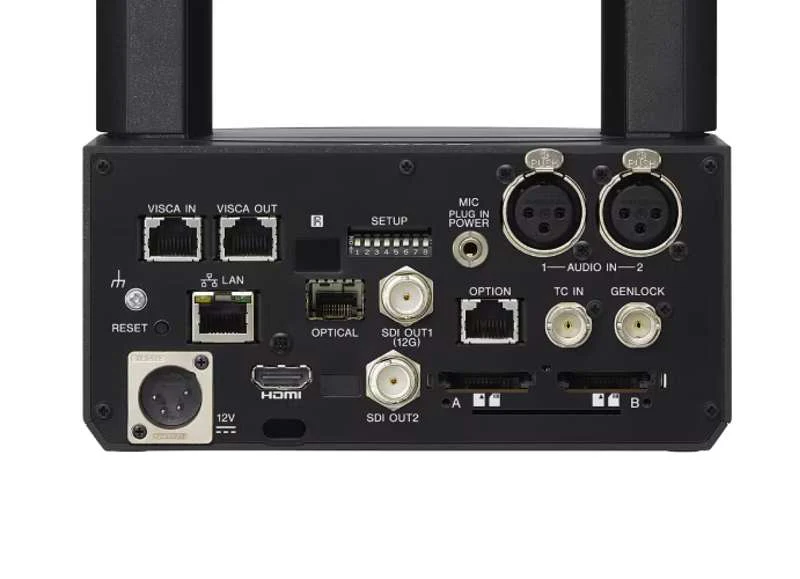

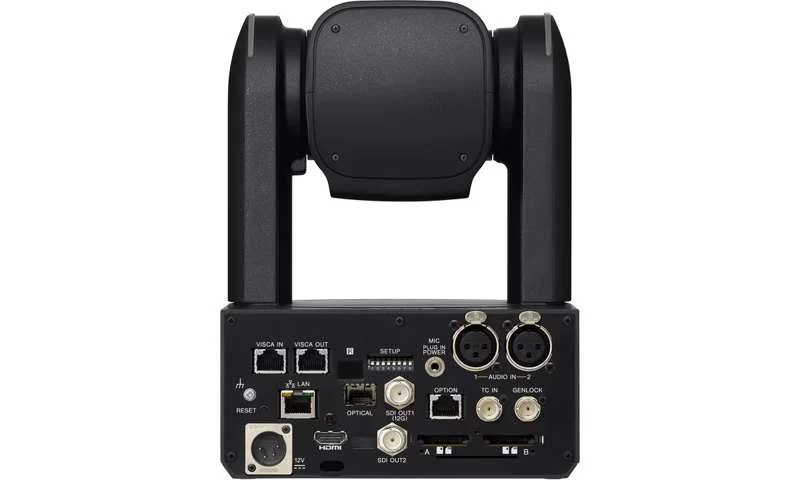

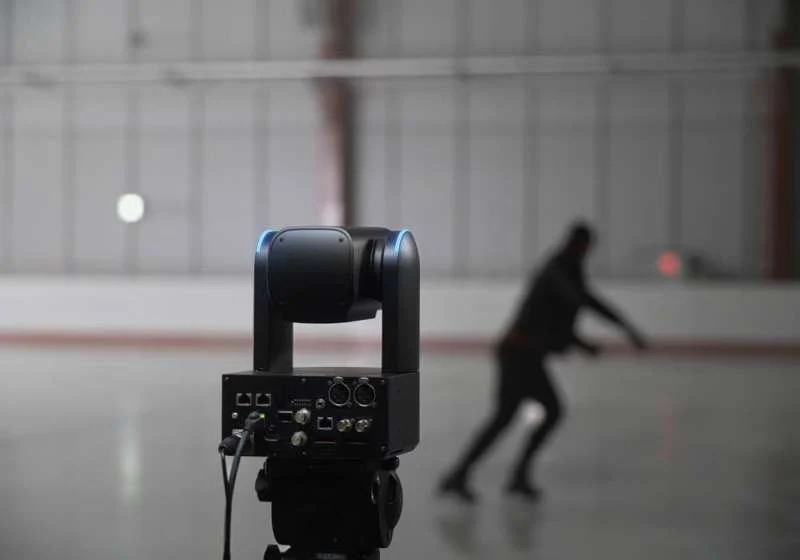

Connectivity

• 12G‑SDI primary output + 3G‑SDI monitoring
• SFP+ slot for optical fiber 12G‑SDI
• HDMI output
• Audio via dual XLR inputs or 0.14” stereo mini jack
• Power via 4‑pin XLR or PoE++
• Dual memory slots supporting CFexpress Type A & SDXC cards
• IP streaming via SRT / RTMP / RTMPS / RTSP / NDI|HX

Other Features

• Compatible with optional RM‑IP500 PTZ joystick controller
• Built‑in four‑color tally lamp
• TC IN / GENLOCK terminal for multi‑camera sync
