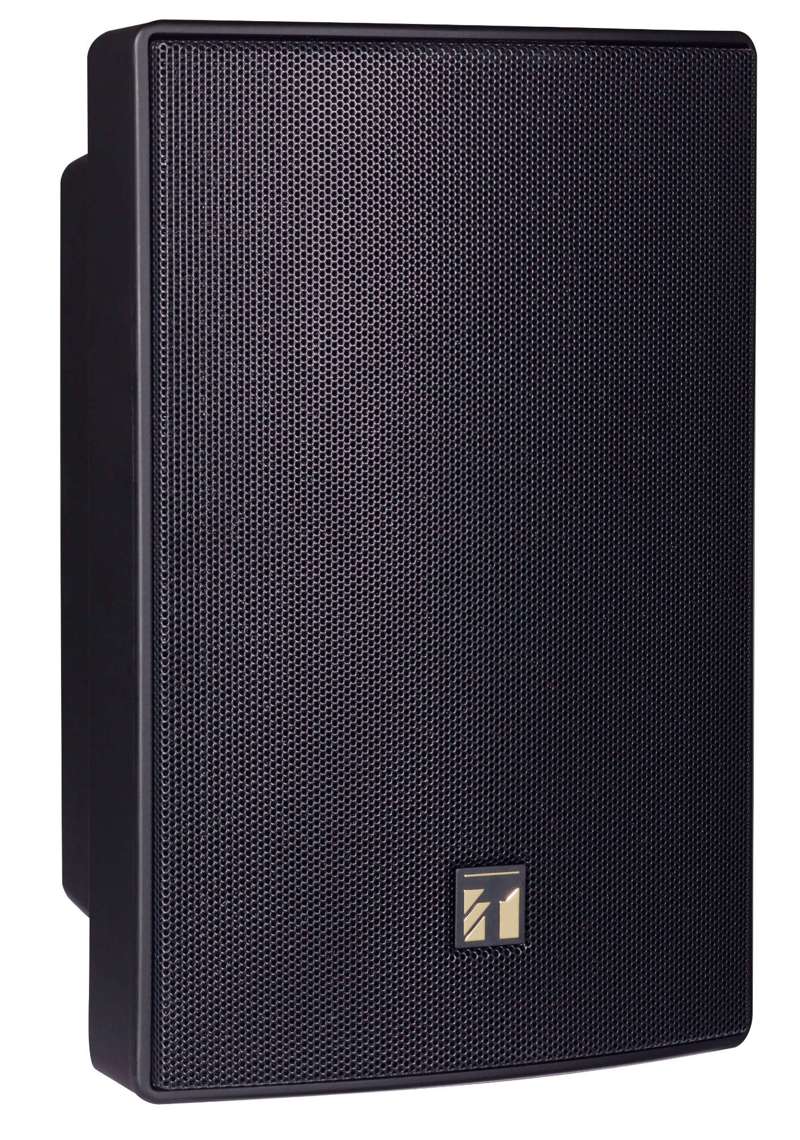

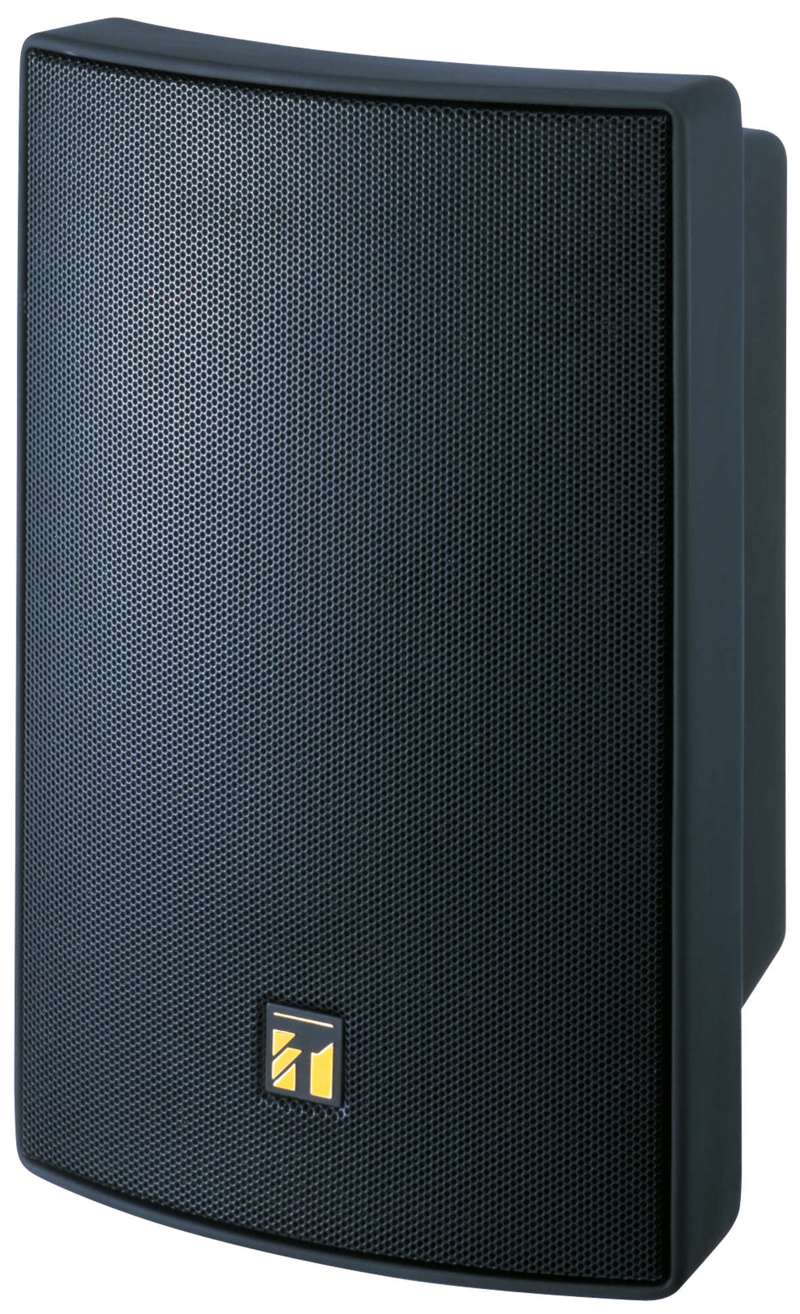

TOA Electronics BS‑1030B Universal Speaker – 30W, 2‑Way Wide‑Range Surface‑Mount Speaker (Black)
Universal Speaker – BS-1030B
The TOA BS‑1030B is a compact, high‑quality 2‑way bass‑reflex speaker designed for both announcements and music reproduction. With a wide frequency range and flexible impedance options, it is ideal for commercial environments such as retail stores, restaurants, hospitality venues, educational spaces, and public facilities. Its splash‑proof construction (IPX3/IPX4 compliant*) allows installation under eaves or semi‑outdoor areas where it is not directly exposed to heavy rain.
Key Features
- 2‑Way Bass Reflex Design: Provides clear, full‑range sound suitable for speech and background music.
- Cost‑Effective PA Speaker: High performance for budget‑conscious installations.

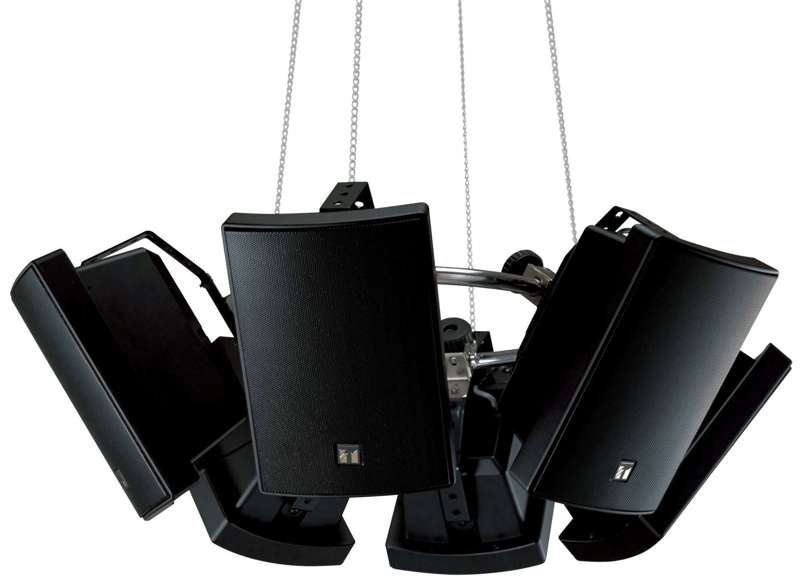

- Flexible Installation: Multiple mounting options for vertical or horizontal placement.
- Select-able Impedance: Choose low‑impedance (8 Ω) or high‑impedance (100 V/70 V) using a rotary switch.
- Splash‑Proof Construction: IPX3/IPX4 rated for semi‑outdoor environments.
Specifications
General
- Enclosure Type: 2‑way bass‑reflex
- Rated Input: 30 W
Impedance Settings
- Low Impedance: 8 Ω
- 100 V Line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
- 70 V Line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Performance
- Sound Pressure Level: 90 dB (1 W, 1 m)
- Frequency Response: 80 Hz – 20 kHz
- Speaker Components: 12 cm cone‑type + dome‑type
Construction
- Speaker Cable: 2‑core cabtyre cord, 6 mm diameter
- Water Protection: IPX4 (vertical or horizontal installation*)
- Operating Temperature: –10°C to +50°C
- Enclosure Material: ABS resin, black (RAL9011 GRAPHITE BLACK), painted
- Net: Surface‑treated steel plate, black (RAL9011), powder‑coated
- Bracket: Surface‑treated steel plate, black (RAL9011 equivalent), powder‑coated
Dimensions & Weight
- Dimensions: 196 (W) × 290 (H) × 150 (D) mm (unit only)
- Weight: 2.5 kg (unit only)
Included Accessories
- Mounting bracket × 1
- Bracket mounting screws × 2
- Bracket mounting washers × 2
*Note: Splash‑proof compliance depends on installation orientation and environmental exposure.
