TOA Electronics CS‑304 Wide‑Range Outdoor Speaker – 30W, Constant‑Directivity Horn, IP65 Weather‑Resistant

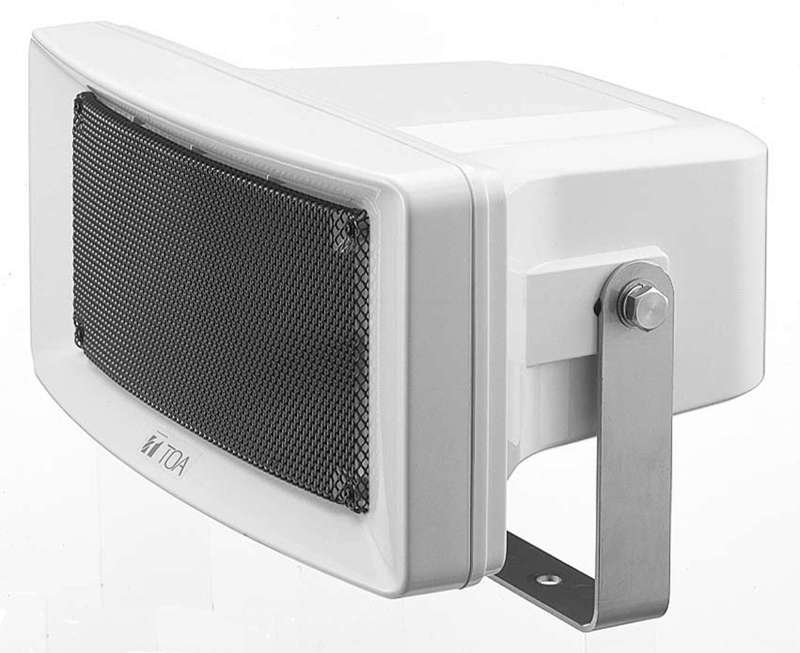

Wide Range Speaker – CS-304
The TOA CS‑304 is a durable, weather‑resistant wide‑range speaker designed for outdoor voice paging, background music, and tone signaling. Built with stainless steel hardware and a rugged ABS enclosure, it delivers clear, highly intelligible sound even in harsh environments. Its constant directivity horn ensures consistent audio dispersion across a 90° horizontal range, making it ideal for public spaces, industrial sites, transportation hubs, and outdoor facilities.
Key Features
- Rectangular Wide‑Range Design: Ideal for paging, announcements, and music distribution.
- Constant Directivity Horn: Provides uniform, clear sound over ±45° horizontal coverage.
- Weather‑Resistant Construction: Polyurethane resin paint, impact‑resistant ABS, and stainless steel hardware ensure long‑term durability.
- Wide Operating Temperature Range: Reliable performance from –20°C to +55°C.
- Selectable Impedance: Easily change wattage/impedance via a rear rotary switch.
- IP65 Rated: Dust‑tight and protected against water jets—ideal for outdoor installations.
Specifications
General
- Rated Input: 30 W
Rated Impedance
- 100 V Line: 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W)
- 70 V Line: 170 Ω (30 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Performance
- Sensitivity: 98 dB (1 W, 1 m)
- Frequency Response: 120 Hz – 15 kHz
- Horizontal Directivity: 90° (±45° from front axis)
- Directivity at 3 kHz: 93 dB or more (1 W, 1 m, ±45°)
Components & Construction
- Speaker Component: 12 cm cone‑type
- Speaker Cable: 2‑core cabtyre cord (6 mm diameter)
- Dust/Water Protection: IP65
- Operating Temperature: –20°C to +55°C
- Horn & Cover: ABS resin, off‑white, painted
- Bracket: Stainless steel
- Net: Aluminum, gray, painted
- Screws: Stainless steel
Dimensions & Weight
- Dimensions: 366 (W) × 230 (H) × 272 (D) mm
- Weight: 3.1 kg
Included Accessories
- Mounting bracket × 1
- Mounting screws × 2
- Mounting washers × 2
