Vaddio RoboSHOT 4K 12E HDBT PTZ Camera with 12x Optical Zoom

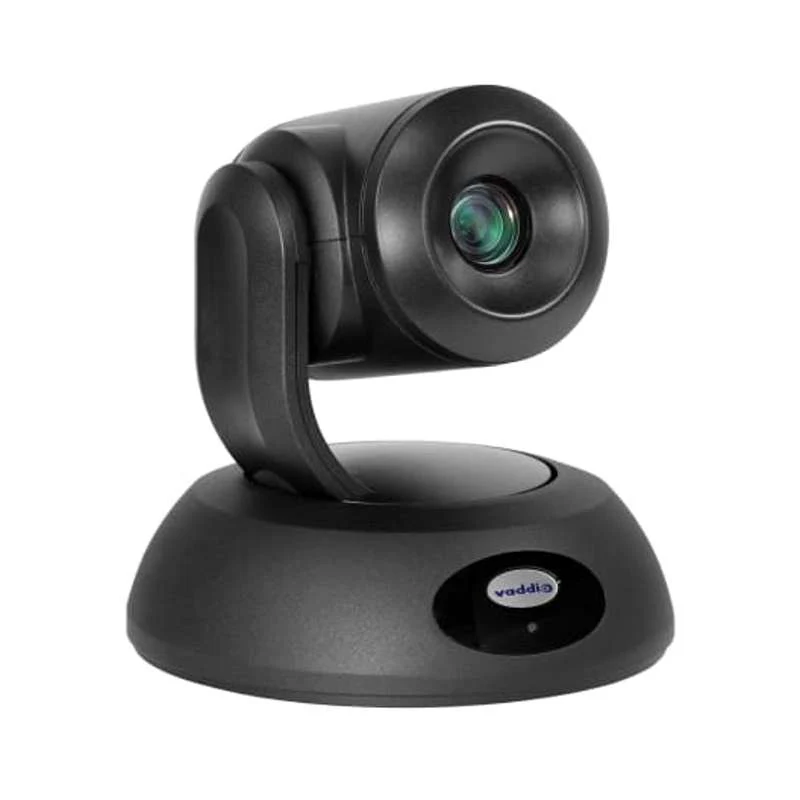

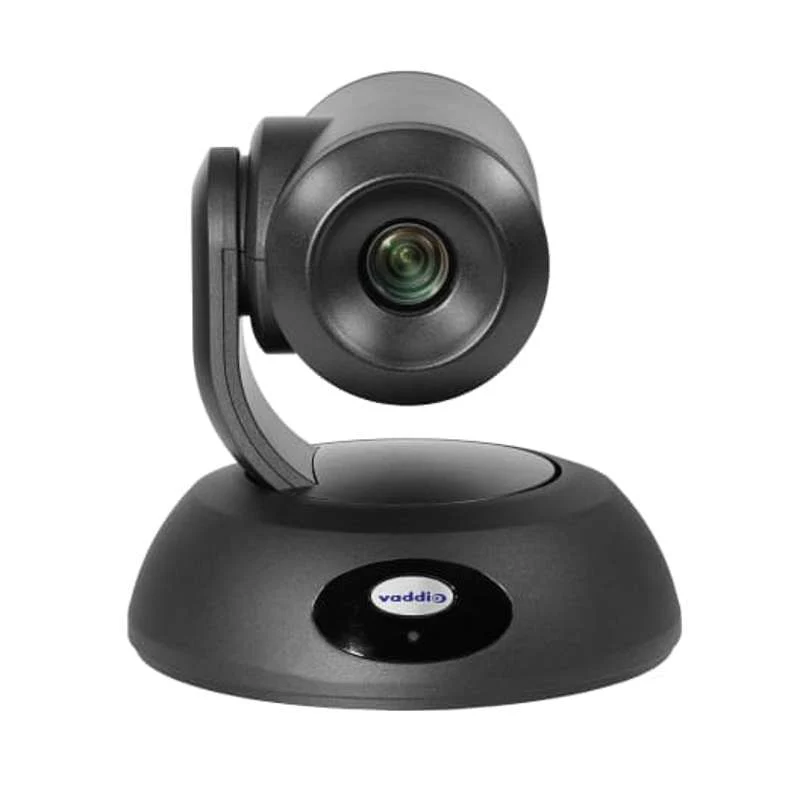

RoboSHOT® 4K 12E HDBT PTZ Camera

The RoboSHOT® 4K 12E HDBT is part of Vaddio’s Elite Series of professional A/V presentation cameras, engineered for conference rooms, training rooms, and classrooms that require a wide field of view and ultra‑smooth camera motion. With simultaneous HDBaseT and HDMI outputs, the RoboSHOT 12E delivers flexible, high‑quality video integration for modern AV systems.

Featuring a 1/2.5‑type Exmor R CMOS sensor, RoboSHOT Elite cameras provide outstanding image quality with advanced image signal processing for improved low‑light performance, high contrast, and crisp 2160p/30 UHD video. Enhanced wide dynamic range helps balance uneven lighting by revealing detail in both dark and bright areas of the image.

Designed for enterprise‑grade control and management, the RoboSHOT 4K 12E includes a browser‑based web interface for remote camera control from anywhere over an IP network. Combined with Vaddio’s Tri‑Synchronous Motion technology, all three camera axes move simultaneously for natural, ultra‑smooth PTZ movement.

Key Features

• UHD 4K video resolution up to 2160p/30
• 12x optical zoom with wide‑angle coverage
• 1/2.5‑type Exmor R CMOS image sensor
• Simultaneous HDBaseT and HDMI video outputs
• Remote IP management via browser‑based web interface
• Tri‑Synchronous Motion technology for smooth PTZ movement
• Kensington lock compatible

Applications

• Conference rooms
• Training rooms
• Classrooms and lecture spaces
• Professional AV and enterprise video environments

What’s Included

• RoboSHOT 4K 12E HDBT PTZ camera (Black or White)

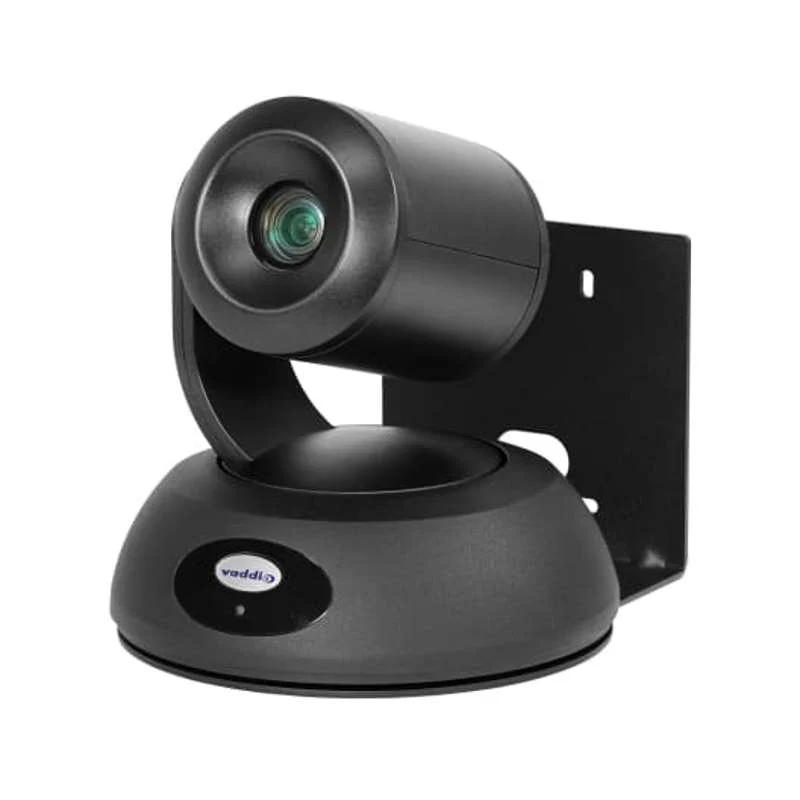

• Thin‑profile wall mount with mounting hardware and installation manual
• Vaddio IR Remote Master

Dimensions & Measurements

• Width: 7.05 in (17.9 cm)
• Height: 6.94 in (17.6 cm)
• Depth: 6.75 in (17.1 cm)
• Product Weight: 4.85 lbs (2.2 kg)
• Shipping Dimensions: 14" × 14" × 18" (355.6 × 355.6 × 457.2 mm)
• Shipping Weight: 13 lbs (5.9 kg)

Performance & Technical Specifications

• Camera Type: PTZ
• Image Sensor: 1/2.5‑type Exmor R CMOS
• Total Pixels: 8.51 Megapixels
• Maximum Resolution: 2160p @ 30 fps
• Minimum Illumination: 1 Lux (F1.6), 100 Lux recommended
• Zoom: 12x optical
• Field of View: 70.2° (wide) to 6.8° (tele)
• Pan Range: ±150°
• Tilt Range: +90° / −30°
• Pan/Tilt Speed: 0.35°/sec to 120°/sec
• Preset Positions: 16 (Custom Home Position)

Connectivity & Control

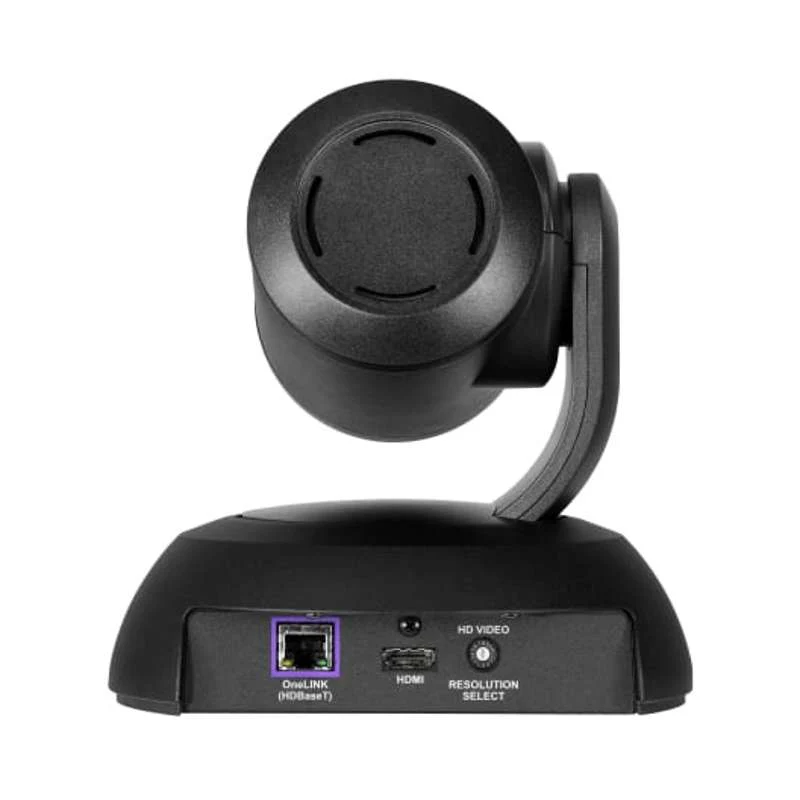

• Output Ports: HDBaseT, HDMI
• Control Methods: IR Remote, Joystick, RS‑232, Telnet, Web UI
• Third‑Party Control: RS‑232, Telnet
• Power Type: PoE+ (Midspan Power Injector)
• OneLINK Compatibility: Native

Environmental & Compliance

• Operating Temperature: 32°–104°F (0°–40°C)
• TAA Compliant: Yes
• Certifications: CE, FCC, HDBaseT, TAA
• Warranty: 3 Years
• UPC: 840077508807
