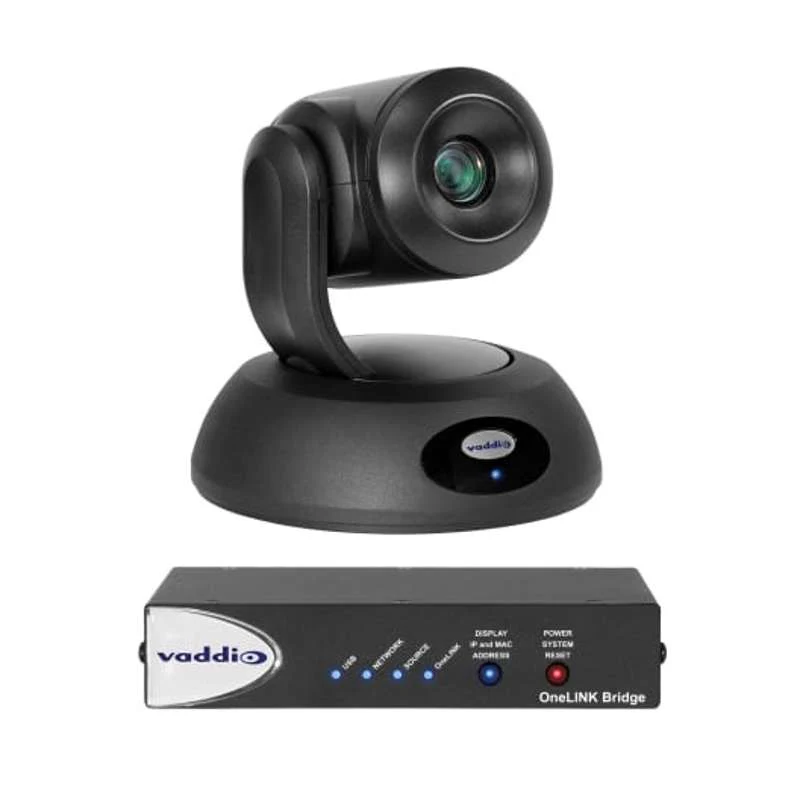

Vaddio RoboSHOT 4K 30E HDBT OneLINK Bridge PTZ Camera System, Black

RoboSHOT 4K 30E HDBT OneLINK Bridge PTZ Camera System

RoboSHOT Elite Series cameras are professional A/V presentation cameras. Simultaneous HDBaseT HDMI and SDI Video Outputs. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view. Includes OneLINK Bridge Extension System.

Key Features:

• 4K30 Video Resolution
• 30x Optical Zoom
• 1/2.5-type Exmor R CMOS sensor
• 70.2° horizontal field of view
• Simultaneous HDBaseT, HDMI, SDI Outputs
• Remote IP Management
• Simple, clutter-free camera extension with HDBaseT technology
• Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
• Bridges audio and video for easy soft-client conferencing
• Simultaneous HDMI, USB 3.0 and 3G-SDI outputs
• Configurable audio matrix with AEC
• Up to 1080p/60 resolution available over uncompressed USB
• Kensington Lock Capable

Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 2160p/30 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 30E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

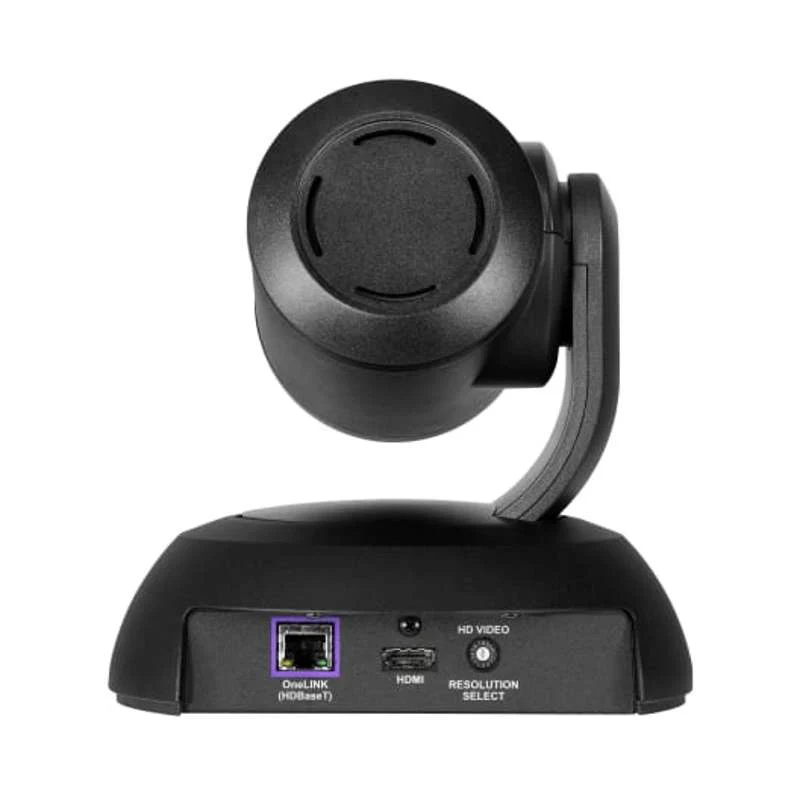

Video outputs include simultaneous HDBaseT and HDMI. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.

OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom.

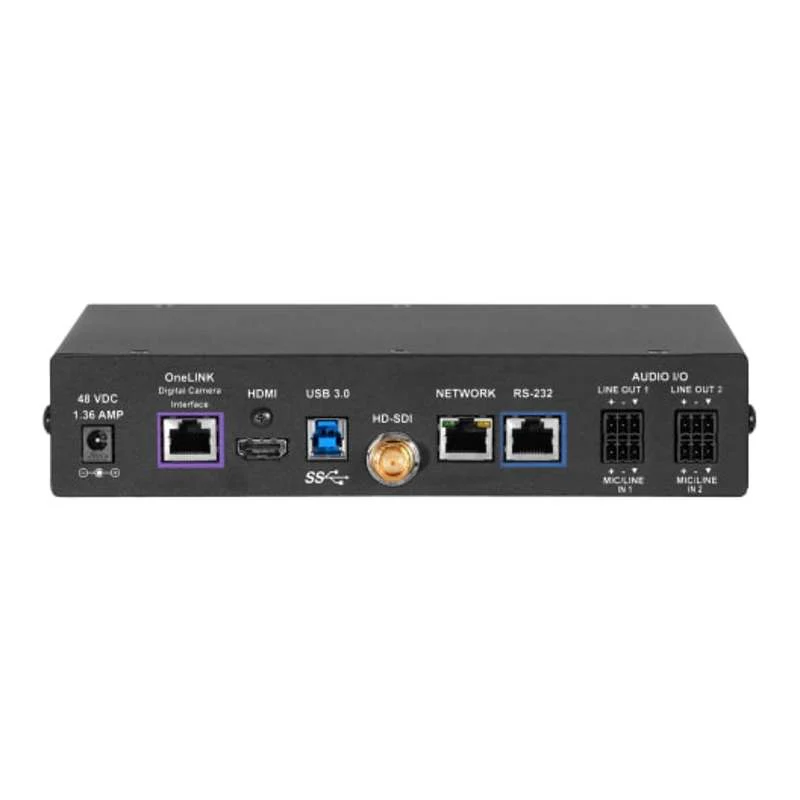

Along with the bridging capabilities, the system’s OneLINK Bridge Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.

This Package Includes:

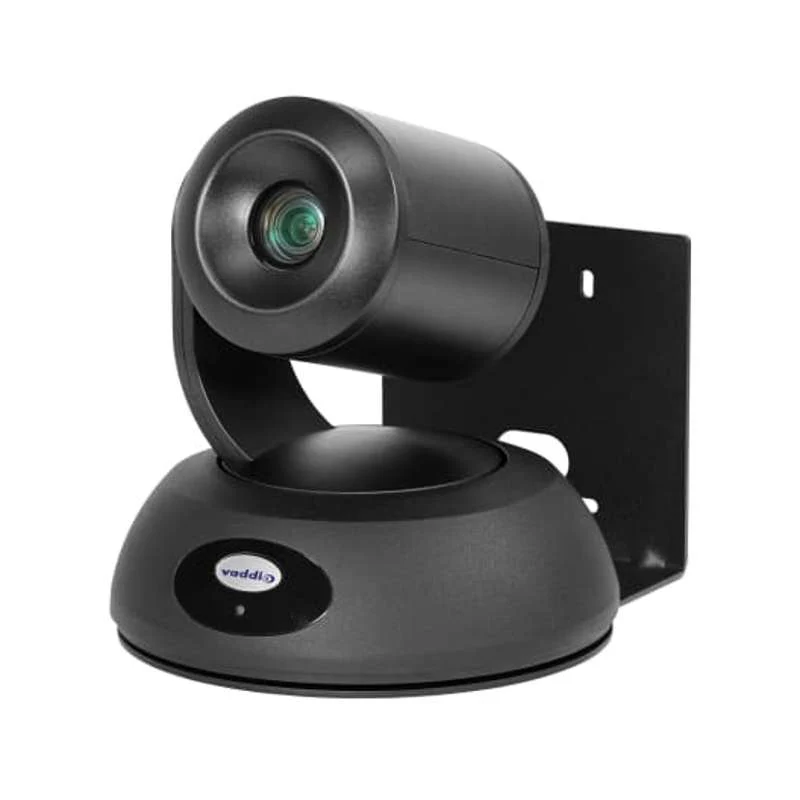

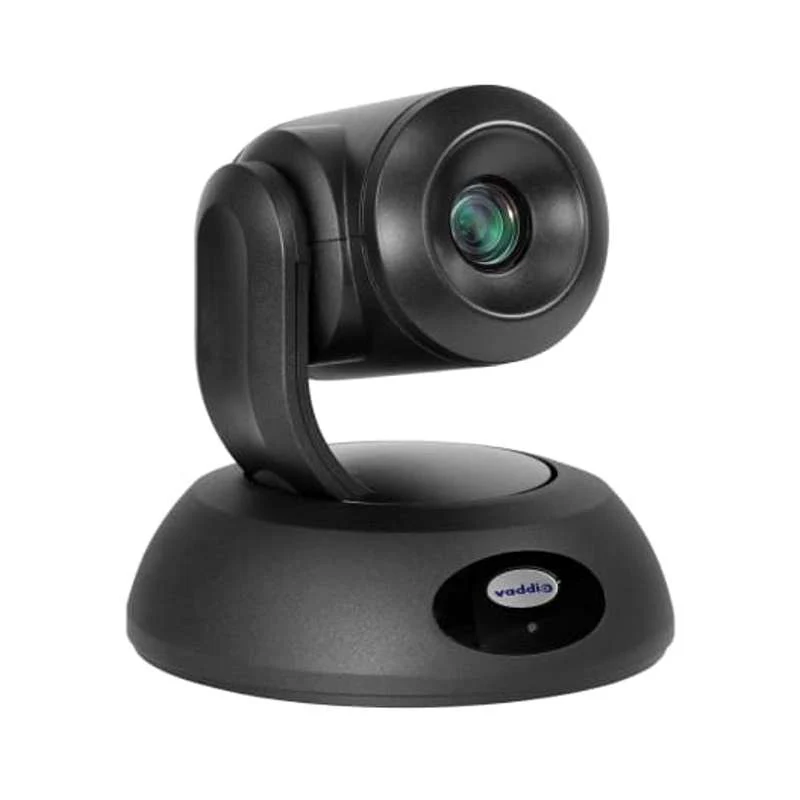

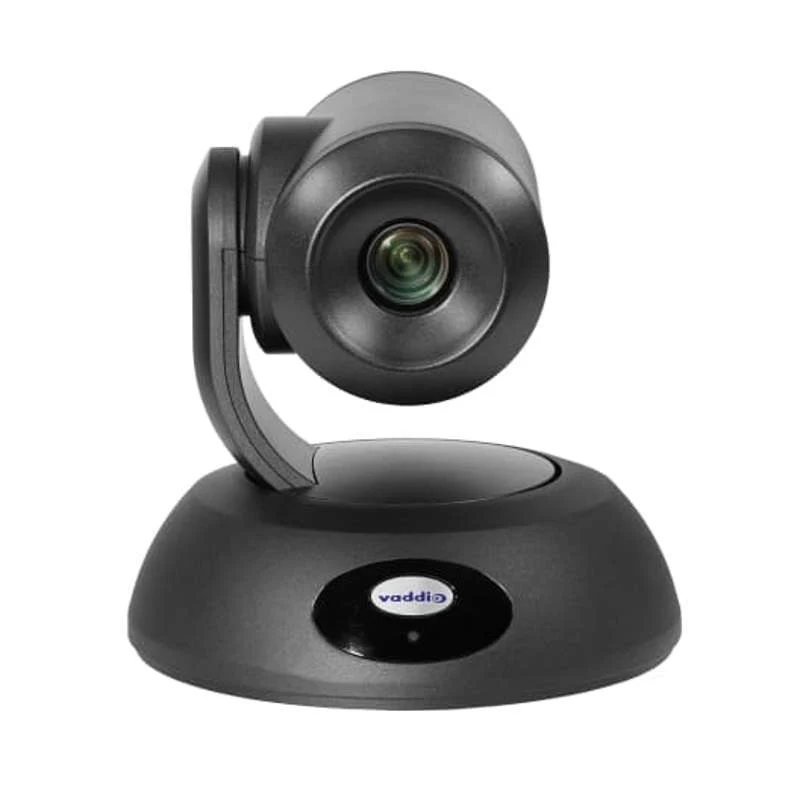

• RoboSHOT 4K 30E HDBT camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
• Vaddio IR Remote Commander

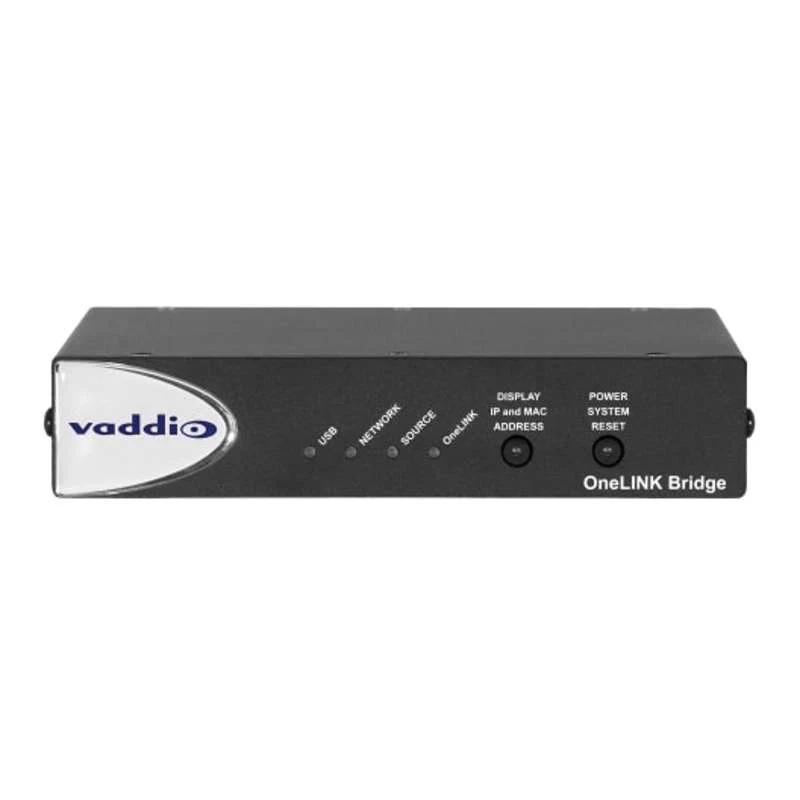

• OneLINK Bridge Interface
• 48V power supply with AC cord set(s)
• EZCamera RS-232 Control Adapter
• 4 qty 3-position phoenix-style connectors
• 6 ft. (1.8m) USB 3.0 cable, type A to B
