Vaddio ZoomSHOT 4K with OneLINK Bridge System, White

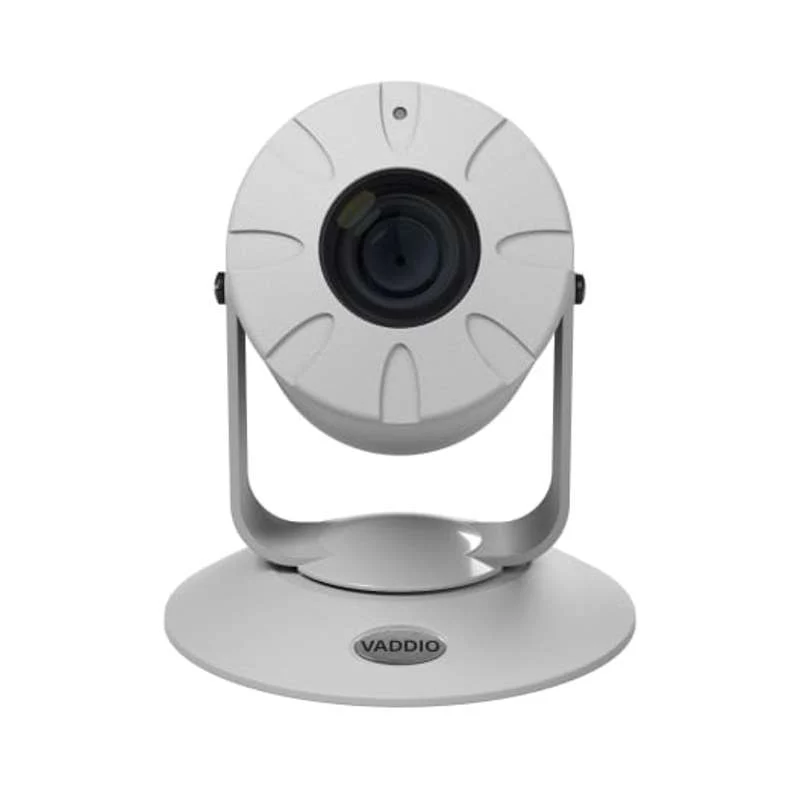

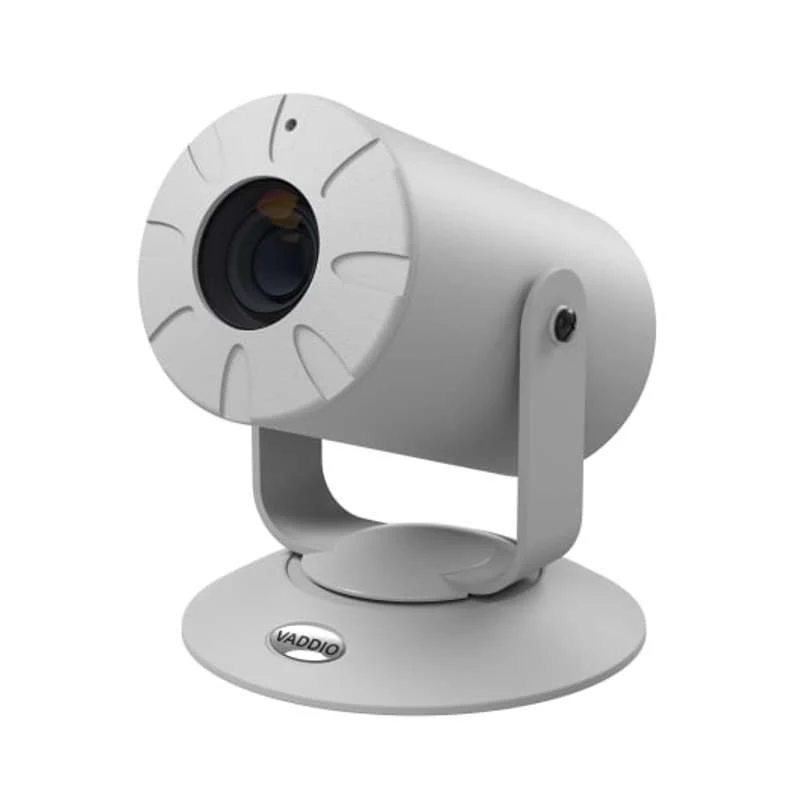

ZoomSHOT® 4K Camera with OneLINK Bridge System

The ZoomSHOT® 4K with OneLINK Bridge System is a low‑cost, professional point‑of‑view camera solution delivering exceptional UHD 4K image quality for modern AV environments. Designed for small, medium, and large rooms, it supports applications including houses of worship, pro AV integration, live events, IMAG systems, UCC applications, videoconferencing, distance learning, and lecture capture.

Featuring a 1/2.5" Sony Exmor™ CMOS image sensor, the ZoomSHOT 4K captures crisp 2160p/30 video with a powerful 30x optical zoom and a wide 70.2° horizontal field of view. Manual pan and tilt with an EZ Set tensioning system provide precise framing, while a presenter‑friendly IR remote ensures simple operation.

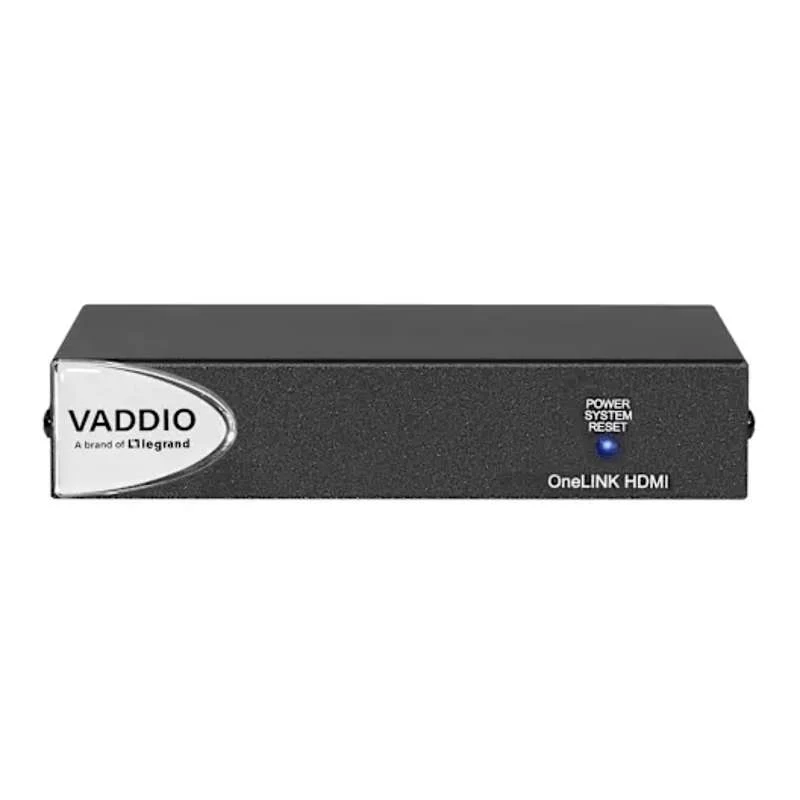

The included OneLINK Bridge System offers expanded connectivity with simultaneous HDMI, SDI, and USB 3.0 outputs, along with audio inputs and echo‑cancelled outputs for in‑room conferencing systems. HDMI video, power, and control signals can be extended up to 150 ft (45.7 m) over a single cable for clean, flexible installations. The camera can also be used as a standalone device if no extension system is required.

Key Features

• UHD 4K video output up to 2160p/30
• 30x powered optical zoom with 70.2° horizontal field of view
• Simultaneous HDMI, SDI, and USB 3.0 outputs via OneLINK Bridge
• Manual pan and tilt with EZ Set tensioning system

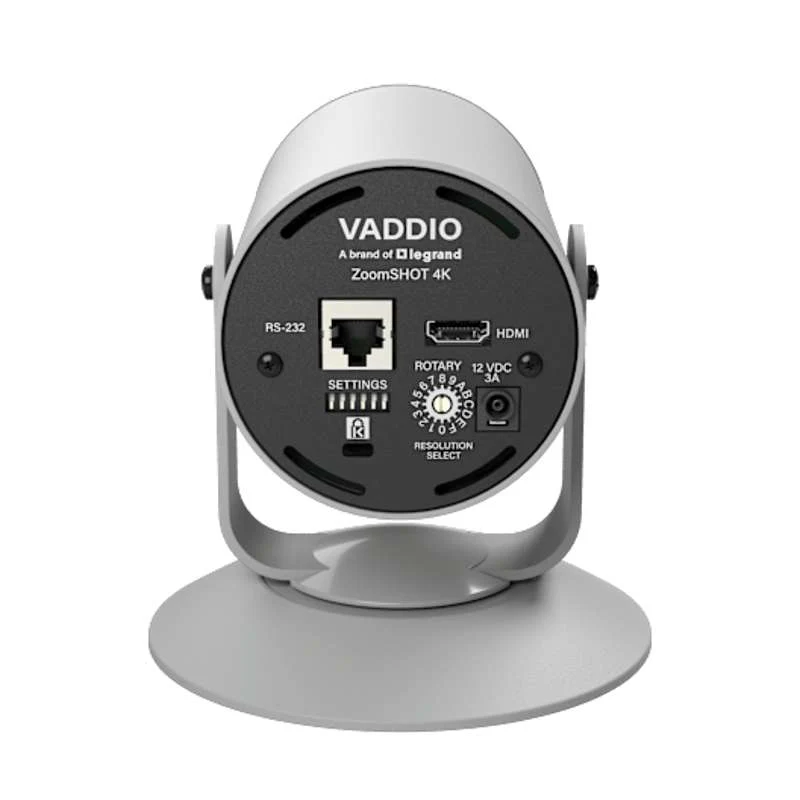

• RS‑232 control for third‑party AV system integration
• Local 12V camera power or remote power via OneLINK Bridge
• Audio inputs and echo‑cancelled outputs for conferencing applications
• Compatible with Kensington security lock

What’s Included

• ZoomSHOT 4K camera (Black or White)

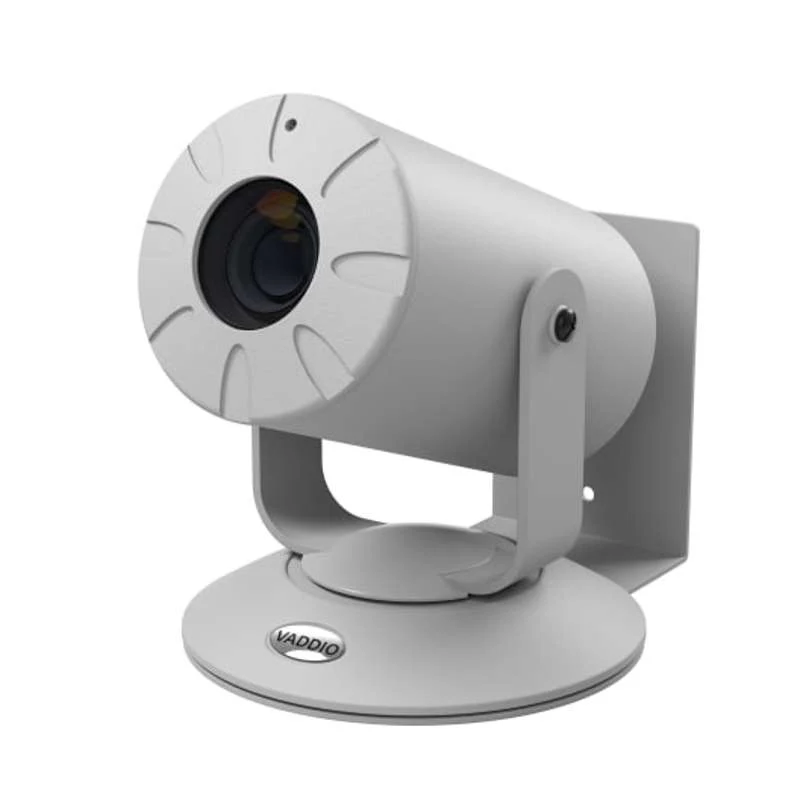

• Thin‑profile wall mount with mounting hardware (Black or White)
• Vaddio IR Shot Commander remote (includes 2 × AAA batteries)
• OneLINK HDBaseT EZIM (Easy Interface Module)
• Cables to connect ZoomSHOT 4K camera to EZIM
• OneLINK Bridge HDBaseT extension
• 48V power supply for OneLINK Bridge with AC cord set(s)

Dimensions & Measurements

• Camera Dimensions: 5.5" W × 7" H × 5.8" D (14 × 17.78 × 14.73 cm)
• QUSB Dimensions: 8.38" W × 1.72" H × 6" D (21.27 × 4.37 × 15.24 cm)
• Product Weight: Camera 3.5 lbs (1.59 kg); QUSB 1.4 lbs (0.64 kg)
• Shipping Weight: 1 lb (0.5 kg)
• Maximum Distance Supported: 150 ft (45.7 m)

Performance & Technical Specifications

• Camera Type: Fixed
• Image Sensor: 1/2.8" Exmor CMOS
• Total Pixels: 2.14 Megapixels
• Maximum Resolution: 2160p @ 30 fps
• Minimum Illumination: 0.3 Lux
• Zoom: 30x optical
• Field of View: 70.2° (wide)
• Pan Range: Unlimited (manual)
• Tilt Range: +30° / −30°
• Preset Positions: 16

Connectivity & Control

• Output Ports: HDMI 1.4b, SDI, USB 3.0, RS‑232
• Input Ports: EZ Power Video
• Control Methods: IR Remote, RS‑232
• Signal Types: HDMI, HD YPbPr, USB 2.0, RS‑232
• Power Type: EZ Power (Local or OneLINK Bridge)
• Quick‑Connect Compatibility: QUSB

Environmental & Compliance

• Operating Temperature: 32°–104°F (0°–40°C)
• TAA Compliant: Yes
• Certifications: CE, FCC, TAA
• Warranty: 3 Years
• UPC: 840077509132
