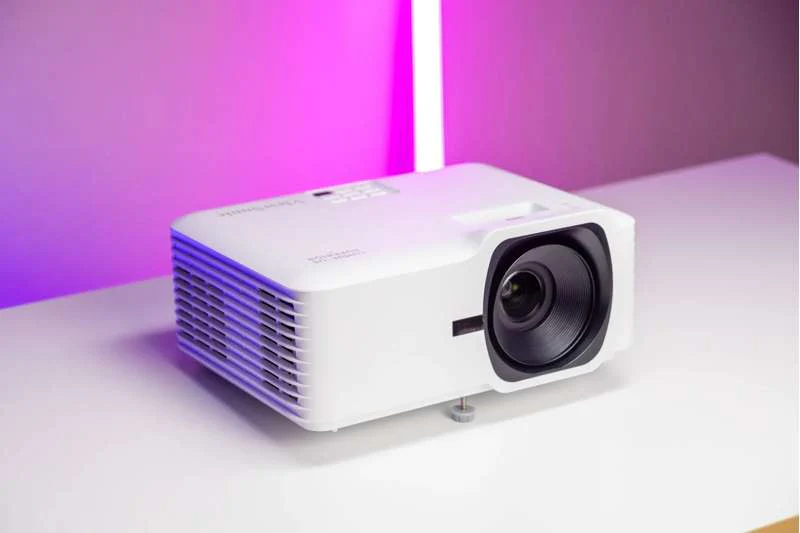

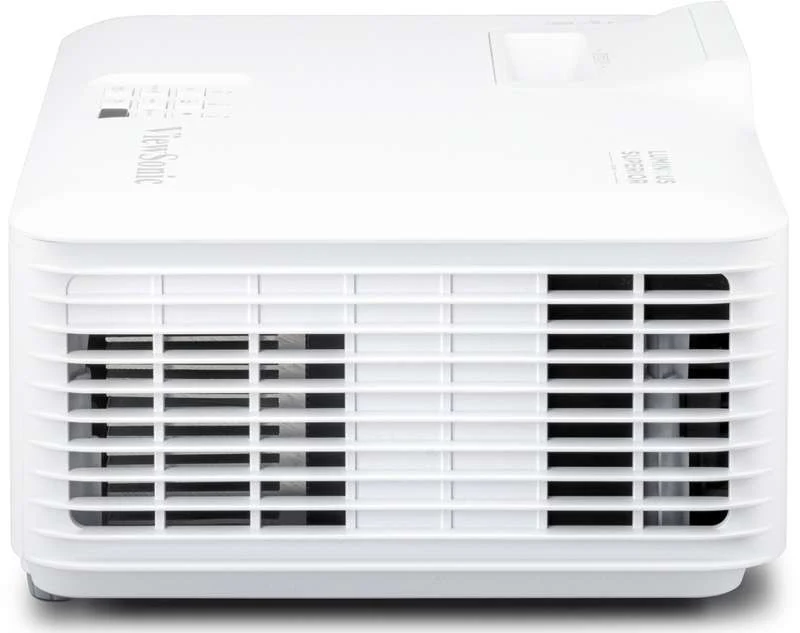

Viewsonic 4,000 Lumens 1080p Short Throw Laser Installation Projector

4,000 ANSI Lumens 1080p Short Throw Laser Installation Projector (LSD400HD-ST)

• 3rd generation laser phosphor technology with up to 30,000-hour lifespan
• 0.5 short throw for large images in limited spaces
• 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
• High native contrast ratio powered by a 0.65” DMD chip and DLP technology
• Flexible installation: H/V keystone, 4-corner adjustment, 360° projection
• Centralized LAN control for efficient management

Overview

The LSD400HD-ST is part of ViewSonic’s Luminous Superior Series, engineered for commercial and educational spaces. Powered by 3rd-generation laser phosphor technology, it delivers 4,000 ANSI Lumens and a long-lasting 30,000-hour light source. Its 0.5 short throw ratio enables a 100” image from just 1.1 meters, ideal for space-limited installations. Supporting screen sizes up to 300" in 1080p Full HD, the projector maintains excellent contrast through a 0.65” DMD chip with DLP technology. With H/V keystone, 4-corner correction, and 360° projection capability, the LSD400HD-ST is versatile for golf simulators, exhibitions, and retail environments.

Bright, Compact, Durable

The projector integrates advanced 3rd-generation laser phosphor technology for improved brightness and luminous efficiency, while being more compact than previous models. Its lamp-free design provides instant on/off and long-term reliability with up to 30,000 hours of maintenance-free operation.

Brilliant Clarity in Every Detail

With 4,000 ANSI Lumens and 1080p Full HD resolution, the LSD400HD-ST delivers vivid, razor-sharp images suitable for golf simulation, exhibitions, and retail displays.

Go Big, Even in Small Spaces

A 0.5 short throw ratio enables large projections in compact areas. From just 1.1 meters away, the projector can produce a 100” screen, offering immersive experiences in tight spaces.

Unmatched Contrasts, Enhanced Visibility

DLP technology, combined with an advanced 0.65" DMD chip, enhances contrast and depth, delivering deeper blacks and rich visual details.

Save on Costs and Energy

The laser light source reduces power consumption by up to 59% compared to conventional lamp-based projectors, providing long-term cost and energy savings.

Reliable Long-Term Performance

DLP projection ensures consistent color performance without yellowing. A sealed engine design (IP6X) prevents dust buildup, maintaining optimal image quality without the need for filters or frequent maintenance.

Effortless Image Correction

Horizontal/vertical keystone and 4-corner adjustment ensure straight, distortion-free images for clean and accurate projection alignment.

Versatile Creative Applications

The projector supports vertical installation and portrait mode, enabling projection onto walls, floors, ceilings, and for dynamic uses such as staging, mapping, and advertising.

Centralized Control

Certified for Crestron and Q-SYS and compatible with AMX, PJ Link, ATEN, and Extron, the LSD400HD-ST supports streamlined LAN-based centralized management.

Brilliant Colors for Golf Simulation

A dedicated Golf Mode enhances greens, blues, and environmental tones, creating a highly lifelike and immersive golf projection experience.
