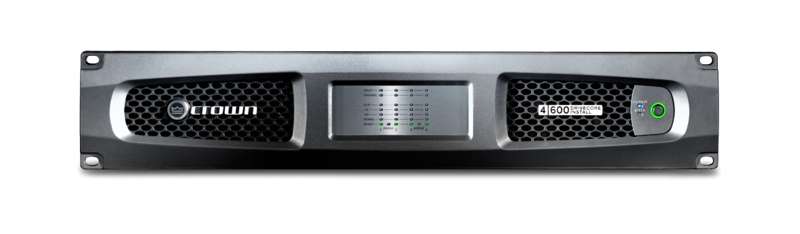

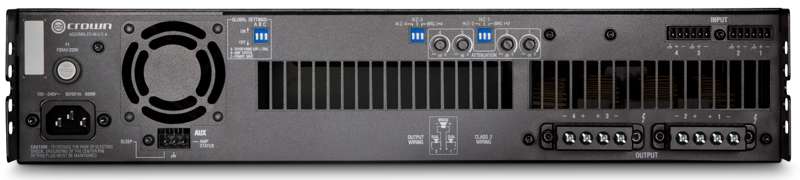

Crown DCI4X600DA-U-USFX 4 Channel Power Amplifier

DCi 4|600DA Four-channel, 600W @ 4 Ohms Power Amplifier with Dante / AES67 Networked Audio, and 70V/100V

For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp™s advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport.

Features

• Integrated Dante/ AES67 Networked Audio  Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers. Includes support for Dante 4.0 firmware for integration with Dante Domain Manager.

• Network Configuration, Monitoring & Control Better monitoring, control and audio manipulation with the HiQnet protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.

• Programmable General Purpose Input/Output Port  GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.

• Digital Signal Processing  DSP capabilities include the following:

  • LevelMAX Limiters

  • Input/Output EQ

  • Crossover

  • Delay

  • Matrix Router

  • Speaker Line Monitoring

SPECIFICATIONS

• Redundant, independent Dante / AES67 ports

• Primary & Secondary

• Will accept 48khz or 96khz

• Capable of sending out Dante / AES67 audio from analog inputs pre/post processing (@ 48kHz)

  • Audio Architect Control and Monitoring

  • DriveCore Amplifier Technology

  • Universal PFC Power Supply

  • DSP

• 48kHz processing

• 20 Presets

• Input router

  • High, medium, and low priority inputs

• Input delay up to 2s

• Input EQ

• Crossover

• Output EQ

• Output Delay up to 100ms

• LevelMAX limiter

• Load Monitoring

  • Pilot tone

• Normal

• Burst

  • Continuous Load Monitoring

  • Sweep Load Monitoring

• Channel Auto-Standby

• Speaker Tunings

  • Aux-Port

• Sleep contact closure

• Amp Status output

  • Removable air filters

  • Front panel LED indicators

  • AES67 Compatible
