K-array Kommander-KA14 I 4x600W at 2ohms Class-D Amplifier with DSP

Kommander-KA14 I – 4x600W@2Ω Class-D Amplifier with DSP

The Kommander-KA14 I is a fully-featured 4x600W@2Ω Class-D amplifier platform with integrated DSP, designed for seamless integration into the K-array ecosystem. It delivers pristine sound and complete control over connected loudspeakers, functioning as a standalone unit or in conjunction with other K-array amplifiers for complex applications.

The dedicated K-array Connect mobile app provides an intuitive interface for remote DSP control and signal routing configuration. For advanced system design and tuning, K-framework3 software offers powerful tools for managing large installations over wired LAN.

Specifications

General

• Type: 4ch switching mode, Class D Amplifier
• Output Power: 4x 600 W @ 2 Ω
• Impedance: Minimum 2 Ω
• Frequency Response: 20 Hz – 20 kHz (±1 dB)

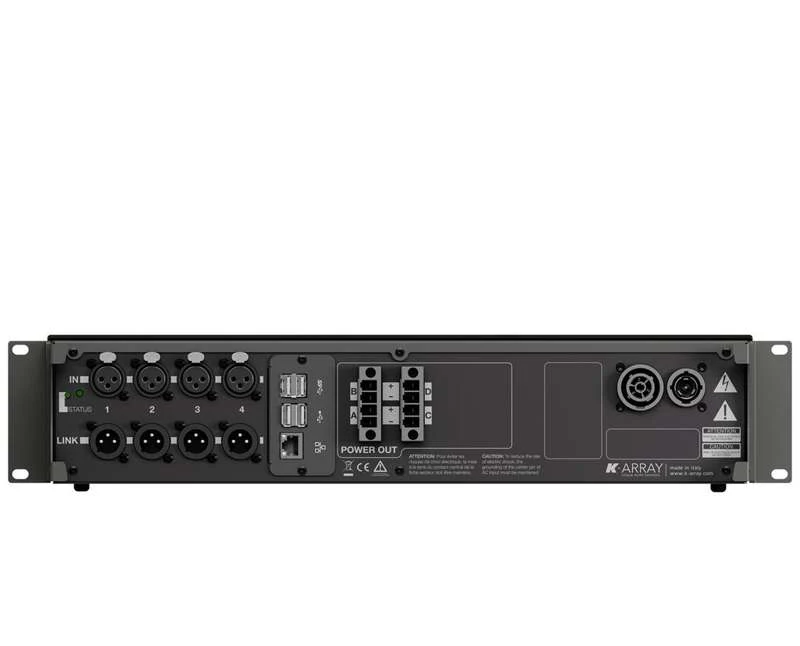

• Connections:
  • Input: 4x XLR-F balanced input
  • Link Output: 4x XLR-M balanced LINK output
  • Speaker Output: 2x PC 4/4-ST-7.62
  • Remote Connectivity: 1x Ethernet RJ45, 4x USB-A, Wi-Fi IEEE 802.11 b/g/n
  • Power: 1x PowerCon TRUE IN, 1x PowerCon TRUE Line
• Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
• Remote Control: Wi-Fi and Ethernet via dedicated app and desktop software

Power Handling

• Protections: Thermal protection, output short circuit, RMS output current protection, high-frequency protection, power limiter, clip limiter
• Main Operating Range: 100-240V AC, 50-60 Hz with PFC
• Power Consumption: 400 W @ 4 Ω load, Pink noise, 1/8 rated power

Handling and Finishes

• Colors: Black
• Material: Stainless Steel
• IP Rating: IP20
• Dimensions (W × H × D): 430 × 87 × 430 mm (17 × 3.4 × 17 in)
• Weight: 6 kg (13.2 lb)
