AVPro 70M 10Gbps HDBaseT Extender Kit

70M 10Gbps HDBaseT Extender Kit

Features

• EDID Management
• 4K60 4:2:0, 4K30 4:4:4
• HDR Support up to 4:2:2 12 Bit (24/30 frames)
• HDCP 2.2 &Earlier

Description

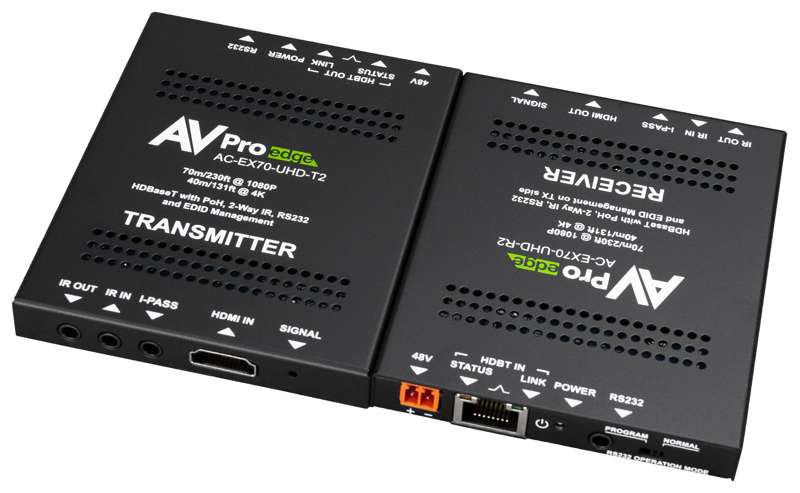

The AC-EX70-UHD-KIT uses proven HDBaseT technology to reliably transport HDMI HD and UHD signals up to 70 meters over a single twisted-pair Category 5e, 6, 6A or 7 cable. AVPro Edge continues to set the standard for video excellence in HDMI extension solutions, with the AC-EX70-UHD-KIT delivering unbeatable performance at a cost-conscious price. Compact and easy to install, this extender has earned its reputation as a mainstay in AVPro’s lineup by providing flawless transport of HD and UHD signals with exceptional long-term reliability.

Capable of uncompressed delivery up to 10.2Gbps (HDBaseT max), the AC-EX70-UHD-KIT is ideal for around-the-clock operation in mission-critical environments such as control rooms, conference rooms, educational campuses, and data centers. Using Cat 6A, 1080p signals travel up to 230 feet, while 4K UHD signals (4K60 4:2:0 or 4K30 4:4:4) reach up to 115 feet. Power is bidirectional and may be applied at either the transmitter or receiver, enhancing installation flexibility.

The AC-EX70-UHD-KIT also excels in residential applications, enabling modern upgrades where older IR wires or legacy HDMI cables fall short. With onboard IR pass-through and RS‑232 communication, control routing becomes simple and efficient. Its sleek size allows for hidden installations, such as behind displays or in tight media spaces. Built-in ESD protection adds an extra defense layer, safeguarding connected devices. And with 14 pre-configured EDIDs—plus EDID copy and bypass—you’ll never again experience frustrating EDID conflicts or incompatibilities.

Benefits

• HD &UHD 4K HDMI Extension: The AC-EX70-UHD-KIT preserves full signal fidelity while extending HDMI over category cable. Designed to overcome the limitations of short HDMI cable lengths, this extender provides flawless long-distance transport and supports advanced HDR formats without degradation.

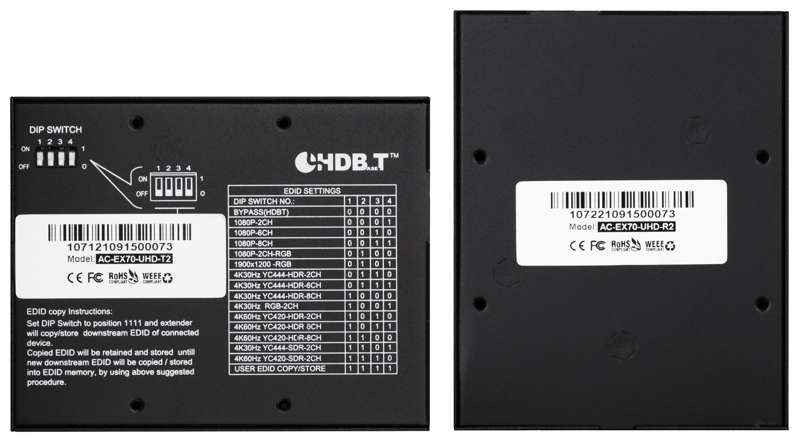

• Comprehensive EDID Management: Legacy displays often cause EDID conflicts with modern sources. This extender’s advanced EDID system enables flexible selection of resolutions and audio formats, ensuring stable, repeatable operation. EDID Copy allows storing known-working EDIDs for future reliability.
• Distance Capabilities: Supports 1080p extension up to 70 meters (230 feet) and 4K signals up to 40 meters (115 feet). Shielded Cat 6A cable is recommended for maximum stability and performance.
• Power Requirements: Power over HDBaseT (PoH) enables powering both units from either end. Compact chassis size makes placement easy behind displays, inside cabinets, or at source equipment locations.

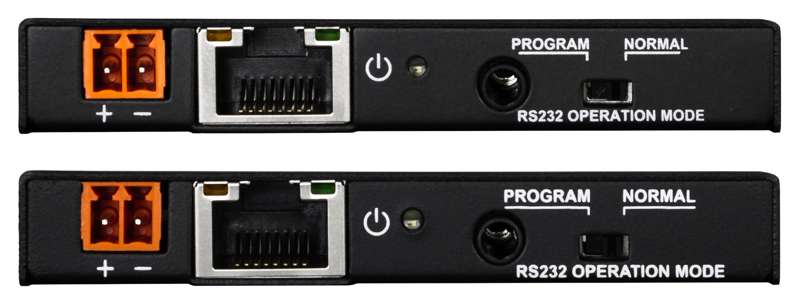

• Control Options: Bidirectional IR and RS‑232 allow full control of source or display devices over a single cable run. The I‑PASS feature enables direct IR routing from a control system to the RX side for seamless integration.
• On‑Site Updatable: Firmware updates can be performed without removing the units from their installation, simplifying maintenance and ensuring long-term compatibility.
