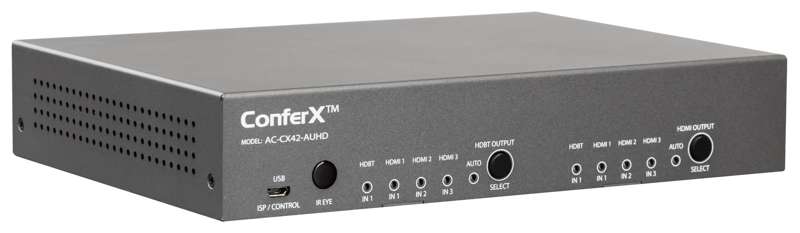

AVPro ConferX 4K 4x2 Matrix Switcher

ConferX 4K 4x2 Matrix Switcher

Features

• HDMI 2.0
• 18Gbps Bandwidth Support (HDMI and HDBaseT Output)
• Advanced EDID Management
• Audio Input and Output

Description

The ConferX 4x2 Matrix is the ideal solution for conference rooms, classrooms, and huddle spaces. This 4K switcher allows any four input sources to be displayed through both the HDBaseT and HDMI output ports, with each output operating completely independently—making dual‑source display simple and flexible. Additional audio inputs and outputs ensure compatibility with microphones, intercom systems, and more.

With an HDBaseT input, this matrix works seamlessly with ConferX HDBaseT Wall Plate Transmitters, which offer HDMI, VGA, or USB‑C inputs and can be installed up to 100 meters away from the AC-CX42-AUHD. End‑users benefit from a simplified, intuitive interface featuring automatic switching, an "Auto" mode that defaults to the last connected device, and convenient one‑button control for each output.

For advanced integrations, the matrix includes a web‑based GUI and full control command set, enabling easy configuration through external control systems. Offering long‑distance extension, versatile inputs, and user‑friendly automation, the ConferX 4x2 Matrix Switcher delivers a powerful, reliable solution for high‑performance AV distribution.

Benefits

• Ultra‑High Definition: Supports 4K60 (4:4:4) 18Gbps video signals, allowing integrators to design systems that handle the latest high‑resolution displays and sources.
• Distance: When paired with ConferX 100‑meter HDBaseT Wall Plate Transmitters, the matrix supports 1080p transmission up to 100 meters (330 ft) and 4K transmission up to 70 meters (230 ft). The HDBaseT output can also send the same distances to a compatible display or AVPro Edge RNE receiver.
• Auto‑Sensing: A true “Set it &Forget it” switcher—automatically detects the incoming signal from BYOD devices and activates it. Users may switch sources manually with output buttons or simply by connecting a new device.
• Control: Offers multiple control options including front‑panel buttons, a web‑based GUI, IR control, and RS‑232—ensuring compatibility with modern control systems and custom integrations.
• Power over HDBaseT: Supplies power to both HDBaseT transmitters and receivers via PoH, eliminating the need for extra power supplies and streamlining installations.
• Interoperability: Works with both HDMI and HDBaseT inputs/outputs, ensuring compatibility with standard HDBaseT equipment and enabling highly flexible system configurations.
